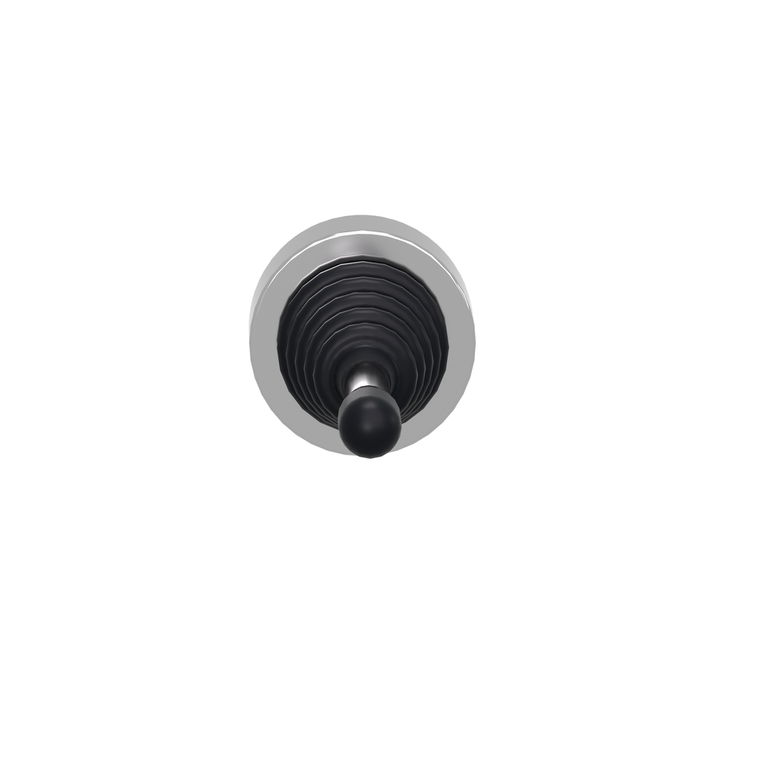

Schneider Electric ZD4PA22 Joystick Component
Schneider Electric
$150.68
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4 head for joystick controller operates with 2 direction spring-return-to-zero-position mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK03 IEC 50102
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Bezel Material:
- chromium plated metal
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB4
- Mechanical Durability:
- 1000000 cycles
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- DNV || UL Listed || BV || LROS (Lloyds register of shipping) || CSA || GL
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Direction Information:
- 2 directions
- Standards:
- IEC 60947-5-5 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.022 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Operator:
- to zero position spring return
- Mounting Diameter:
- 22 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Device Short Name:
- ZB4
- Operator Position Information:
- 3 positions
- Warranty:
- 18 months
- Operator Profile:
- 54 mm long operating shaft
- Ip Degree Of Protection:
- IP66 IEC 60529
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for joystick controller
- Rohs Exemption Information:
- Yes
- Electrical Shock Protection Class:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
