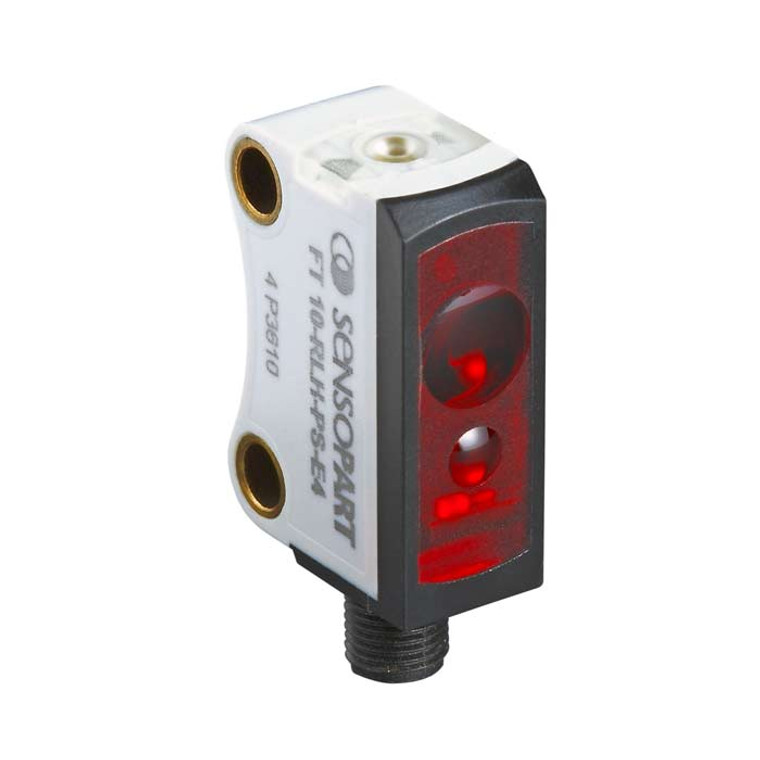

SensoPart FE 10-RL-NS-E4 Through-beam laser sensor
Sensopart
The SensoPart FE 10-RL-NS-E4 is a high-performance through-beam laser sensor designed for precise detection tasks. With a working distance ranging from 1,000 mm to 4,000 mm, this sensor is ideal for applications requiring long-range detection. It features a red laser light source (Class 1) and operates with a velocity of 4,000 Hz, ensuring rapid and accurate response times. The sensor is equipped with a teach-in adjustment for easy setup and configuration. It utilizes an NPN switching output and connects via a 4-pin M5 plug, offering reliable and secure connectivity. The robust design is rated IP 67, making it suitable for use in challenging environments with temperatures ranging from -20°C to +50°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 1000
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Plug M5, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
