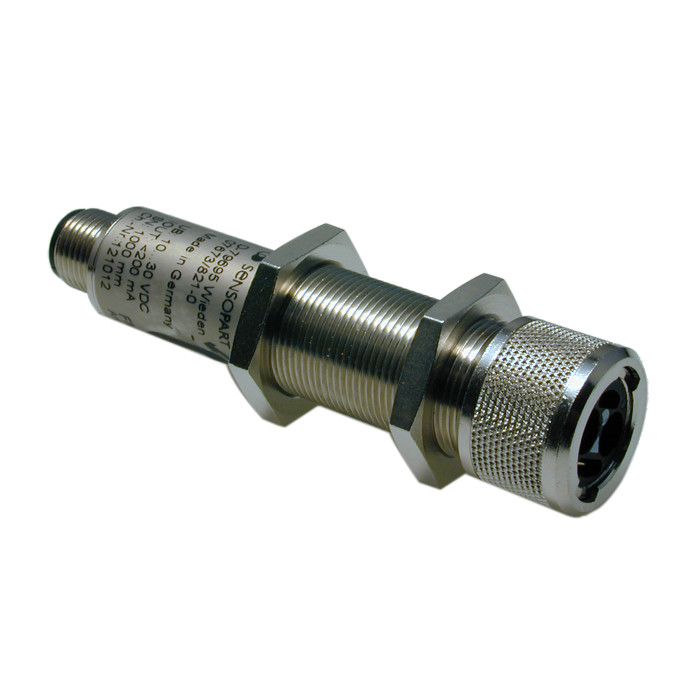

SensoPart FMS 18-34 U-52 Photoelectric proximity sensor for adaptation of fiber-optic cables
Sensopart
The SensoPart FMS 18-34 U-52 is a high-performance photoelectric proximity sensor designed for the adaptation of fiber-optic cables. It features a red LED light source with a frequency of 1000 Hz, providing reliable detection capabilities. The sensor offers both PNP and NPN normally open switching outputs, making it versatile for various applications. With a maximum working distance of 250 mm, it ensures precise operation within its range. The sensor is equipped with a 3-meter, 4-wire cable and a plug M12, 4-pin connection type for easy installation. Its adjustment is facilitated by a potentiometer, allowing for fine-tuning to suit specific needs. The device operates efficiently within a temperature range of -20 to +60°C and boasts an IP65 enclosure rating, ensuring durability in challenging environments. For more detailed information, you can view the datasheet, catalog, and operating instructions through the provided links.
- Velocity [Hz]:
- 1000
- Series:
- M18
- Working distance max. [mm]:
- 250
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
