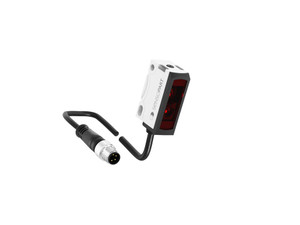

SensoPart FR 10-RL-PS-KM4 Retro-reflective laser sensor
Sensopart
The SensoPart FR 10-RL-PS-KM4 is a high-performance retro-reflective laser sensor designed for precision and reliability. With a working distance ranging from 100 mm to 3000 mm, this sensor is ideal for various industrial applications. It features a compact design from the F10 series, measuring 21.1 x 14.6 x 8 mm, and offers a spot size of 1 x 3 mm. The sensor operates with a red Class 1 laser light source and provides a PNP switching output. It supports a teach-in adjustment method for easy setup and configuration. The sensor is equipped with a 200 mm pigtail connection with a 4-pin M8 connector, ensuring secure and efficient connectivity. It operates within a temperature range of -20°C to +50°C and boasts an IP67 enclosure rating, making it suitable for challenging environments. With a velocity of 1000 Hz, this sensor ensures fast and accurate detection. For more detailed information, you can view the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 3000
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Pigtail, plug M8, 4-wire, 200 mm
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
