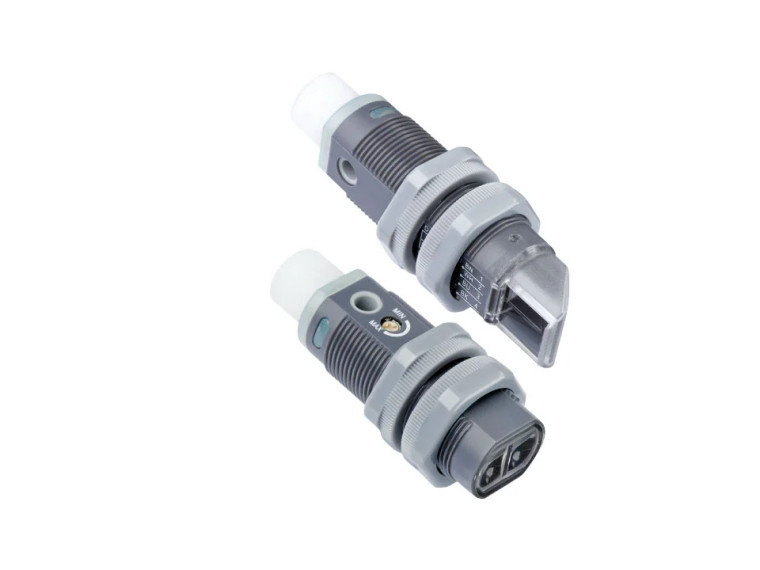

SensoPart FR 18-2 I-NS-K4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 18-2 I-NS-K4 is a top-tier photoelectric retro-reflective sensor engineered for precise detection tasks. It offers a working distance of up to 3.6 meters and employs infrared LED technology for dependable performance. Featuring an NPN switching output, this sensor comes with a 2-meter, 4-wire cable for straightforward installation. With a velocity of up to 1000 Hz, it is ideal for high-speed environments. The sensor operates efficiently in temperatures ranging from -25°C to +55°C and has an IP67 enclosure rating, ensuring resilience in tough conditions. Its settings can be fine-tuned using a potentiometer for customized performance. For further details, access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 3600
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- NPN
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
