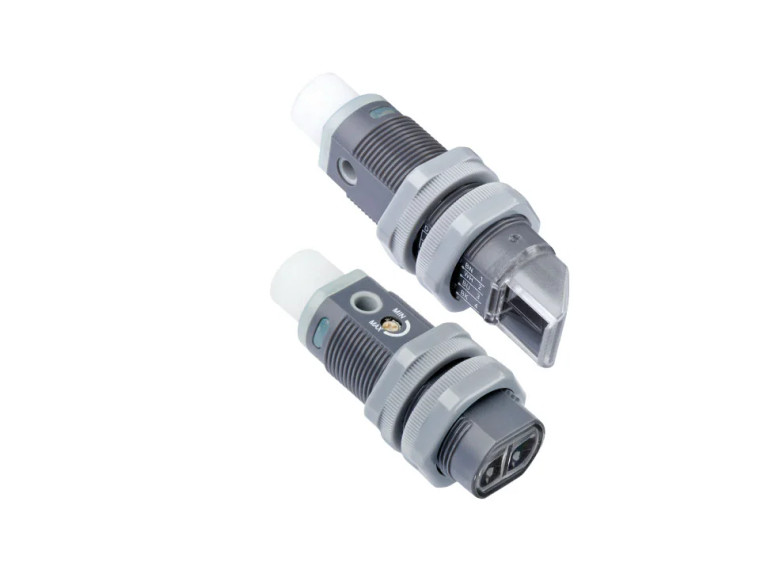

SensoPart FR 18-2 I-PS-L4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 18-2 I-PS-L4 is a top-tier photoelectric retro-reflective sensor engineered for precision detection tasks. It offers a working distance of up to 3.6 meters and employs infrared LED technology to deliver dependable performance across diverse environments. This sensor features a PNP switching output and is equipped with a 4-pin M12 plug for straightforward connectivity. It operates efficiently within a temperature range of -25°C to +55°C and boasts a remarkable velocity of 1000 Hz, making it ideal for high-speed applications. Its durable design is rated IP67, providing excellent protection against dust and water ingress. The sensor's settings can be fine-tuned using a potentiometer, allowing for customized performance to suit specific requirements. For further details, access to the datasheet, catalog, operating instructions, and CAD files is available through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 3600
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
