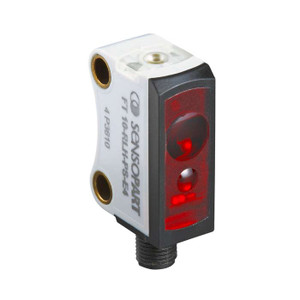

SensoPart FS/FE 10-RL-NS-K4 Through-beam laser sensor
Sensopart
The SensoPart FS/FE 10-RL-NS-K4 Through-beam Laser Sensor is a high-performance photoelectric sensor designed for precise detection tasks. With a working distance ranging from 0 to 4000 mm, this sensor is ideal for applications requiring reliable object detection over long distances. It features a red Class 1 laser light source, ensuring accurate and safe operation. The sensor operates with a velocity of 4000 Hz, making it suitable for high-speed applications.
Equipped with a teach-in adjustment feature, the FS/FE 10-RL-NS-K4 allows for easy setup and configuration. The NPN switching output ensures compatibility with various control systems. The sensor is housed in a compact F10 series enclosure, measuring 21.1 x 14.6 x 8 mm, and is rated IP 67 for protection against dust and water ingress.
The sensor operates within a temperature range of -20 to +50°C, making it suitable for use in diverse environmental conditions. It comes with a 2-meter, 4-wire cable for straightforward installation and connectivity. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
