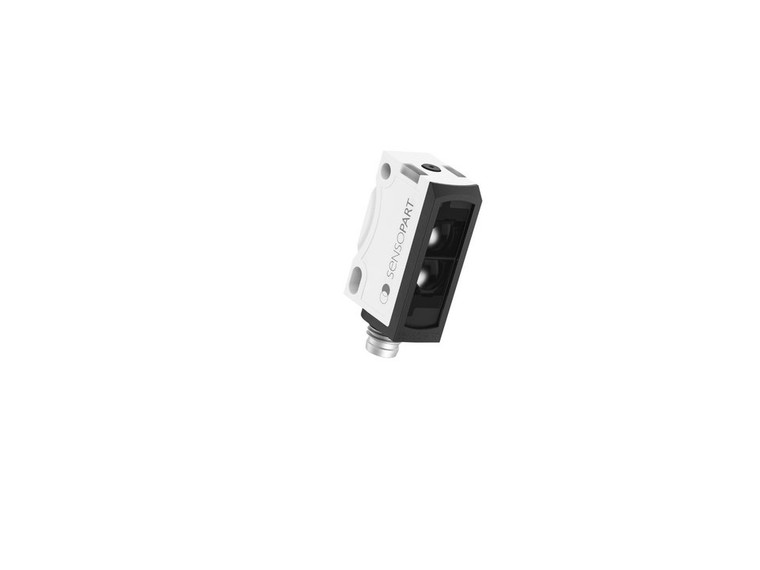

SensoPart FT 25-BH-PNSL-M4M Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 25-BH-PNSL-M4M is a high-performance photoelectric diffuse sensor with advanced background suppression, designed for precise detection tasks. It operates within a working distance range of 1 to 200 mm, utilizing a blue LED light source for enhanced accuracy. The sensor features a robust metal plug M8 4-pin connection and supports IO-Link interface for seamless integration into automated systems. With a fast response velocity of 700 Hz, it ensures quick and reliable performance. The sensor is equipped with teach-in adjustment for easy setup and offers auto-detect switching output (PNP/NPN). It is built to withstand harsh environments, boasting an IP69K enclosure rating and a wide operating temperature range from -20 to +60°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 700
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, blue
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
