SensoPart FT 25-C2-GSL-M4M RGB color sensor with IO-Link
Sensopart
The SensoPart FT 25-C2-GSL-M4M RGB color sensor is engineered for high-precision color detection, making it perfect for applications that demand accurate color recognition. It boasts a working distance of 12 ± 3 mm and operates at a velocity of 2.5 kHz, ensuring swift response times. The sensor is equipped with a teach-in function and a Push-Pull switching output, enhancing its versatility across various industrial settings. Its IO-Link interface facilitates seamless integration into modern automation systems. Built to withstand harsh conditions, the sensor features a robust design with a metal plug M8 4-pin connection and an enclosure rating of IP67 and IP69. The LED RGB light source ensures reliable color detection, while the compact F25 series design (34 x 20 x 12 mm) allows for easy installation. It operates efficiently within a temperature range of -20 to +55°C, making it suitable for diverse operational environments. For comprehensive details, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Amount of colors:
- 1
- Sensor principle:
- Color sensor
- Spot size [mm]:
- 1 x 5
- Series:

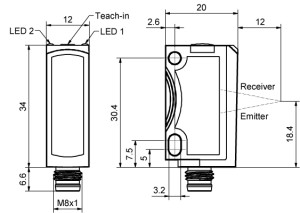

- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 12
- Working distance max. [mm]:
- 12
- Velocity [Hz]:
- 2500
- Interface:
- IO-Link
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
