SensoPart FT 55-RLAM-800-PNSUID-S1L8M Distance sensor for a wide range of applications
Sensopart
The SensoPart FT 55-RLAM-800-PNSUID-S1L8M Distance Sensor is engineered for versatility across numerous applications, offering a working range from 200 mm to 1000 mm. Encased in a robust metal housing with an IP67/IP69 rating, it is built to withstand challenging environments. Utilizing a Class 1 red laser light source and triangulation principle, this sensor delivers high precision with a linearity of 1.5 mm and a resolution of 0.05 mm. It supports a velocity of 1000 Hz and ensures repeatability of 0.1 mm. The sensor features 2 switching outputs (PNP/NPN auto-detect) and provides measurement output via RS485, along with analog voltage and current options. It includes a display and an 8-pin M12 metal plug for seamless connectivity. Operating efficiently within a temperature range of -20°C to +50°C, it exhibits minimal temperature drift of 0.01%. For comprehensive details, access the datasheet, catalog, brochure, operating instructions, and CAD files through the available links.
- Linearity [mm]:
- 1.5
- Sensor principle:
- Distance sensor with triangulation
- Series:

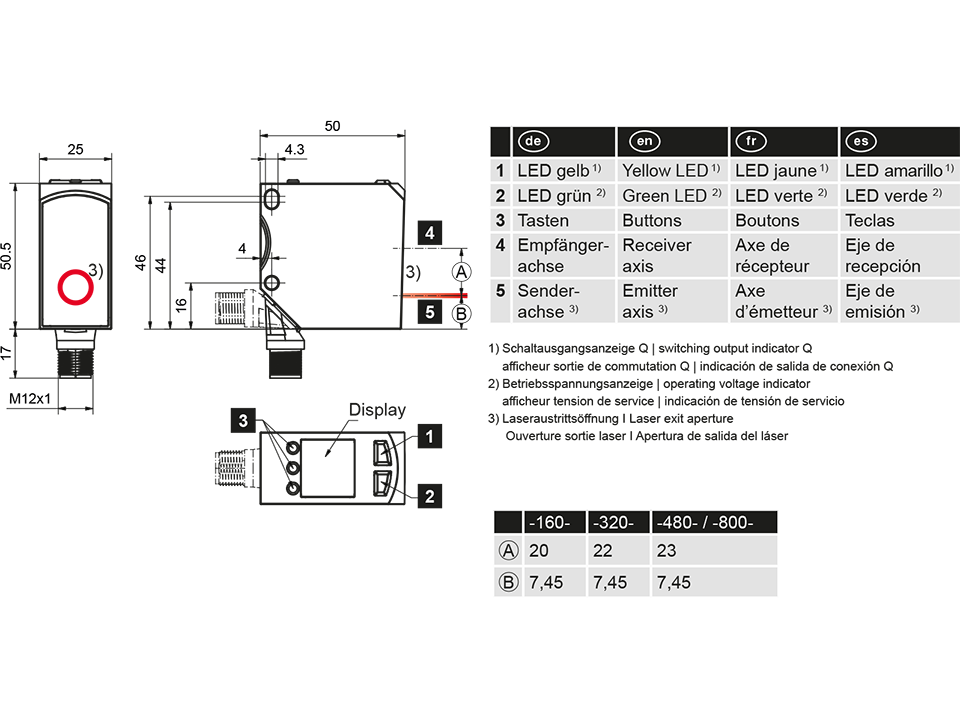

- F55 (50 x 50,1 x 23 mm)
- Working distance min. [mm]:
- 200
- Working distance max. [mm]:
- 1000
- Velocity [Hz]:
- 1000
- Interface:
- RS485
- Type:
- Cubic
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.05
- Repeatability [mm]:
- 0.1
- Temperature range [°C]:
- -20 ... +50
- Temperature drift [%]:
- 0,01%
- Measurement output:
- RS485, Analog (voltage), Analog (current)
- Connection type:
- Metal plug M12, 8-pin
- Enclosure rating:
- IP 67, IP69
