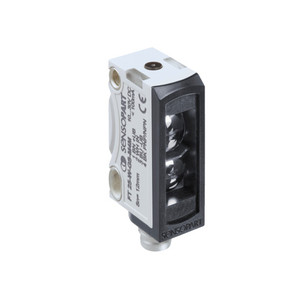

SensoPart FT 25-RGB2-GS-KL4 Multi-color contrast sensor
Sensopart
The SensoPart FT 25-RGB2-GS-KL4 is a high-performance multi-color contrast sensor designed for precise detection tasks. With a sensing range of 12 ± 3 mm and a spot size of 1 x 4 mm, this RGB-contrast sensor operates at a rapid 10 kHz frequency, ensuring quick and accurate readings. It features a push-pull switching output and is equipped with a pigtail connection, complete with a 4-pin M12 connector for easy integration into various systems. The sensor's LED RGB light source provides reliable performance across a working distance of 9 to 15 mm. Built to withstand harsh environments, it boasts an enclosure rating of IP67 and IP69, and operates efficiently within a temperature range of -20 to +55°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Contrast sensor
- Spot size [mm]:
- 1 x 4
- Working distance min. [mm]:
- 9
- Working distance max. [mm]:
- 15
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Pigtail, plug M12, 4-wire, 150 mm
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
