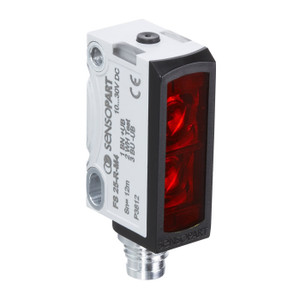

SensoPart FT 25-RH-NS-M4M Photoelectric proximity sensor with background suppression
Sensopart
The SensoPart FT 25-RH-NS-M4M is a high-performance photoelectric proximity sensor designed for precise detection with background suppression. It operates within a working distance range of 1 to 200 mm, utilizing a red LED light source for accurate sensing. The sensor features a teach-in adjustment for easy setup and offers a switching output of PNP. With a robust metal plug M8 4-pin connection, it ensures reliable connectivity. The sensor is built to withstand harsh environments, boasting an IP69K enclosure rating and a temperature range of -20 to +60°C. It is part of the F25 series, measuring 34 x 20 x 12 mm, and operates at a velocity of 1000 Hz. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 1
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
