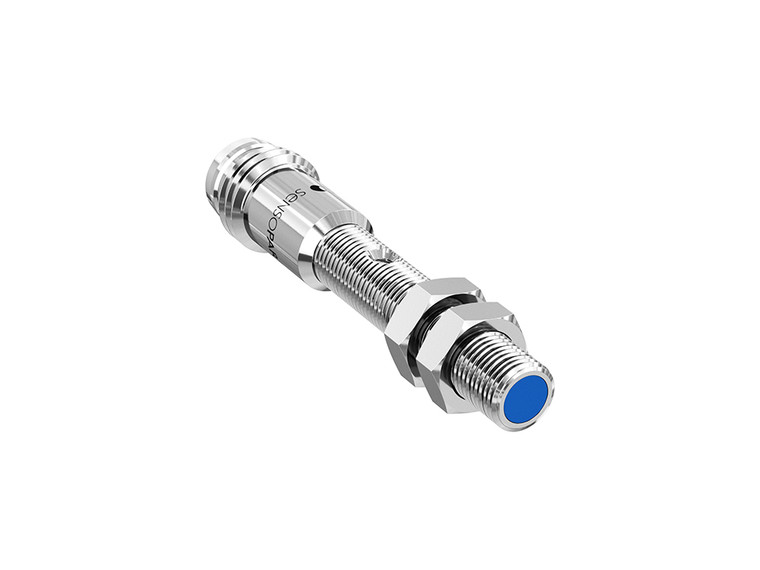

SensoPart IMT 5-S-B2-PSL-M3M Inductive sensor M5 / standard switching distance
Sensopart
The SensoPart IMT 5-S-B2-PSL-M3M is a high-performance inductive sensor designed for precision and reliability. Encased in a compact M5 housing, this sensor offers a standard switching distance of 1.5 mm, making it ideal for applications requiring close proximity detection. It features a PNP/NO output and is equipped with an M8 3-pin plug for easy connectivity. The sensor supports IO-Link 1.1, providing various parameterization options to tailor its performance to specific needs. Whether used in automation, manufacturing, or quality control, this sensor ensures accurate and consistent results.
- Rated operating distance Sn [mm]:
- 1.5
- Repeatability [mm]:
- 0.03
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 3000
- Mounting:
- Flush
- Housing:
- Stainless steel
- Series:
- M05
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
