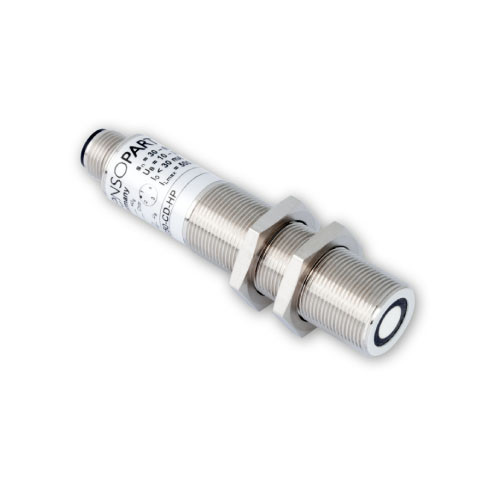

SensoPart UT 18-270-A-IL4 Ultrasonic sensor with analogue output
Sensopart
The SensoPart UT 18-270-A-IL4 Ultrasonic Sensor is designed for precision and reliability in a compact M18 housing. It offers a working distance range from 30 mm to 300 mm, making it ideal for various applications requiring accurate distance measurement. The sensor features an analogue output of 4 to 20 mA, ensuring seamless integration with existing systems. With a response time of 30 ms and a resolution of 0.4 mm, it provides quick and precise measurements. The sensor operates at an ultrasonic frequency of 390 kHz and maintains high repeatability with a deviation of just 0.05 mm. It is built to withstand harsh environments, with an operating temperature range from -25°C to +70°C and an IP65 enclosure rating for protection against dust and water. The sensor is equipped with a plug M12, 4-pin connection type for easy installation. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Response time [ms]:
- 30
- Output:
- Analog (current)
- Ultrasonic frequency [kHz]:
- 390
- Series:
- M18
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.4
- Repeatability [mm]:
- 0.05
- Temperature range [°C]:
- -25 ... +70
- Temperature drift [%]:
- ± 1.5 %
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
