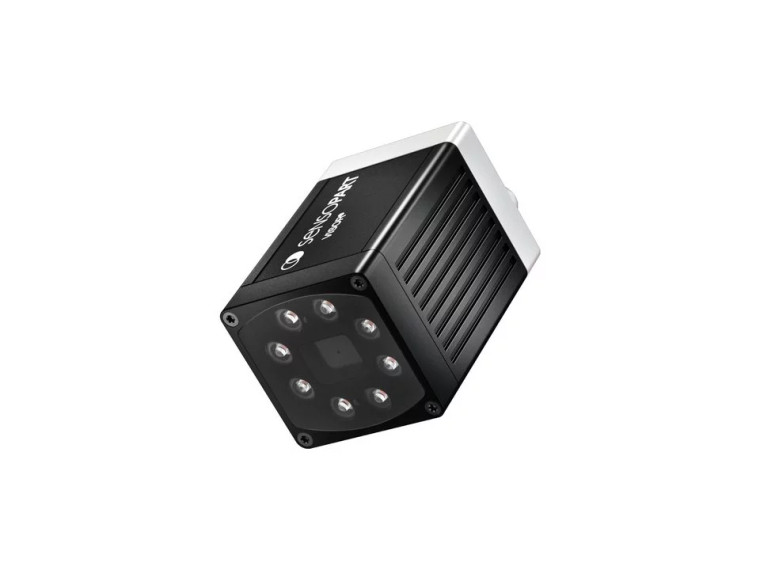

SensoPart V50-CR-P3-I-WD-M2-L VISOR® V50 Code Reader, Professional, 255 jobs each with 255 detectors, infrared illumination, increased depth of field, wide field of view, motorized focus, LAN interface, target laser
Sensopart
The SensoPart V50-CR-P3-I-WD-M2-L VISOR® V50 Code Reader is a professional-grade device designed for high-performance code reading applications. It supports up to 255 jobs, each with 255 detectors, ensuring versatile and efficient operation. Equipped with infrared LED illumination, this code reader offers an increased depth of field and a wide field of view, making it ideal for various industrial environments. The motorized focus and LAN interface enhance its usability and connectivity, while the integrated target laser aids in precise alignment. The monochrome image chip, utilizing CMOS technology, delivers high-resolution images with 2560 x 1936 pixels. With a sensor size of 1/1.8" and a pixel size of 2.80 µm, it provides detailed and accurate readings. The device features a wide field of view with a focal length of 9.6 mm and an opening angle of 42.0°, allowing for a minimum field of view of 32 x 24 mm. The enhanced depth of field and motorized focus drive ensure optimal performance in dynamic settings. The target laser operates at a wavelength of 655 nm and is classified as Laser Class 1 according to IEC 60825-1 standards, ensuring safe operation. For more detailed specifications, please refer to the datasheet provided.
- Image chip type:
- Monochrome
- Light source:
- LED
- Light color:
- Infrared
- Wavelength [nm]:
- 850
- LED risk category [RG]:
- 0
- Explanation of risk category:
- Acc. to EN 62471
- Resolution:
- QSXGA
- Number of pixels (H x V) [px]:
- 2560 x 1936
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/1.8
- Pixel size [µm]:
- 2.80
- Field of view type:
- Wide
- Focal length [mm]:
- 9.6
- Opening angle [°]:
- 42.0
- Min. field of view (X x Y) [mm]:
- 32 x 24
- Aperture number:
- 5.6
- Depth of field:
- Enhanced
- Focus drive:
- Motorized
- Target laser:
- Laser red (655 nm)
- Laser class:
- 1 (IEC 60825-1)
- Datasheet:
- View
