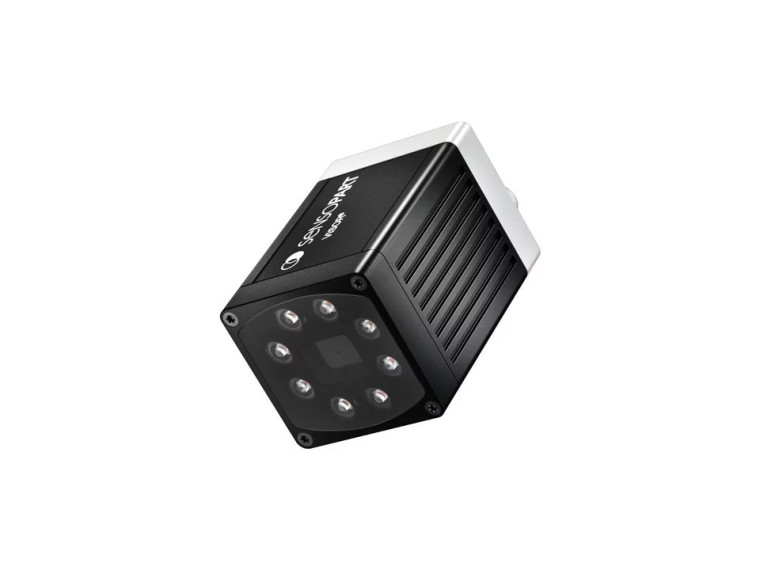

SensoPart V50-CR-P3-R-MD-M2-L VISOR® V50 Code Reader, Professional, 255 jobs each with 255 detectors, red illumination, medium field of view, increased depth of field, motorized focus, LAN interface, target laser
Sensopart
The SensoPart V50-CR-P3-R-MD-M2-L VISOR® V50 Code Reader is a professional-grade device designed for high-performance code reading applications. It features a monochrome image chip with CMOS technology, providing a high resolution of 2560 x 1936 pixels. The code reader is equipped with a red LED light source, operating at a wavelength of 625 nm, ensuring optimal illumination for accurate code detection. With a medium field of view and an enhanced depth of field, this device is capable of handling complex reading tasks with precision.
The motorized focus and target laser, operating at 655 nm, allow for easy and accurate targeting, while the LAN interface ensures seamless connectivity. The device supports both EIP and PROFINET protocols, making it versatile for various industrial environments. The VISOR V50 Code Reader is designed with safety in mind, featuring a laser class 1 rating according to IEC 60825-1, ensuring safe operation in all settings.
With a focal length of 20.0 mm and an opening angle of 18.0°, the code reader offers a minimum field of view of 32 x 24 mm, making it suitable for a wide range of applications. The device's aperture number is 5.6, contributing to its enhanced depth of field capabilities. This code reader is an ideal choice for professionals seeking a reliable and efficient solution for their code reading needs. For more detailed specifications, please refer to the datasheet provided.
- Image chip type:
- Monochrome
- Light source:
- LED
- Light color:
- Red
- Wavelength [nm]:
- 625
- LED risk category [RG]:
- 0
- Explanation of risk category:
- Acc. to EN 62471
- Resolution:
- QSXGA
- Number of pixels (H x V) [px]:
- 2560 x 1936
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/1.8
- Pixel size [µm]:
- 2.80
- Field of view type:
- Medium
- Focal length [mm]:
- 20.0
- Opening angle [°]:
- 18.0
- Min. field of view (X x Y) [mm]:
- 32 x 24
- Aperture number:
- 5.6
- Depth of field:
- Enhanced
- Focus drive:
- Motorized
- Target laser:
- Laser red (655 nm)
- Laser class:
- 1 (IEC 60825-1)
- Datasheet:
- View
