Three-Phase Severe Duty (SP4 Super Premium)

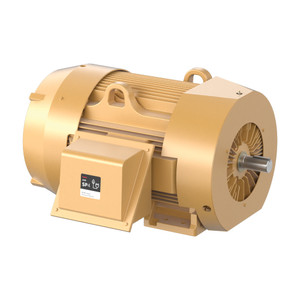

ABB Baldor-Reliance Severe Duty Cast Iron Motors (SP4 Super Premium)
Cast iron, TEFC, 25 to 300 HP three-phase motors built for wet, dirty, high-vibration duty, with NEMA Super Premium (IE4) efficiency and a 48-month warranty.
The ABB Baldor-Reliance SP4 Severe Duty line is a cast iron, totally enclosed fan cooled (TEFC) motor family designed to survive process, water and wastewater, mining, and heavy industrial environments where a general purpose steel-frame motor would not last. Every unit in this category carries a one-piece cast iron frame, IP55 ingress protection, an internal shaft grounding brush, and SP4 Super Premium efficiency that reaches NEMA Super Premium (IEC IE4), above NEMA Premium. Automation Distribution stocks and supplies this line as an authorized ABB Baldor-Reliance distributor.
Line specifications at a glance
|
Power range
25 to 300 HP
2, 4, and 6 pole (3600, 1800, 1200 RPM)
|
Efficiency
93.0 to 96.8%
NEMA Super Premium (IE4)
|
Frames
284 to 449
T, TC, TS, TSC, plus JM and JP pump shafts
|
|
Enclosure
TEFC, IP55
Cast iron frame and conduit box
|
Voltage
230/460V, 460V
Three phase, 60 Hz
|
Rating
1.15 SF, Class F
DOL or inverter duty, 48-month warranty
|
What SP4 Severe Duty gives you
|
Super Premium efficiency
SP4 construction reaches NEMA Super Premium (IE4) across the line, above NEMA Premium. On motors that run continuously, the efficiency gain shows up directly on the energy bill and in lower heat rise.
|
Cast iron severe duty frame
A one-piece cast iron frame, endplates, and conduit box resist corrosion, impact, and vibration that crack or distort steel-band frames in tough service.
|
|
IP55 and shaft grounding
IP55 ingress protection guards against dust and washdown spray. An internal shaft grounding brush diverts bearing currents on inverter-fed installations to protect the bearings.
|
DOL or inverter duty
Run these motors across the line or on a variable frequency drive. Class F insulation with a 1.15 service factor gives thermal margin for real-world duty, backed by a 48-month warranty.
|
Where these motors are used
Severe duty cast iron motors are the default choice where the environment is the problem, not just the load. Common duty for this line includes:
- Water and wastewater: pumps, blowers, aerators, and clarifier drives
- Process and chemical: mixers, agitators, extruders, and conveyors
- Mining, aggregate, and cement: crushers, screens, and material handling
- Pulp, paper, and general heavy industry: fans, compressors, and pumps
- Close-coupled pumping, using the JM and JP pump-shaft frames in this category
Selecting from this category
This category covers 67 foot-mounted severe duty motors and 16 close-coupled pump versions. Narrow your selection by:
| Selection point | Options in this category |
| Horsepower | 25, 30, 40, 50, 60, 75, 100, 125, 150, 200, 250, 300 HP |
| Speed | 3600 RPM (2 pole), 1800 RPM (4 pole), 1200 RPM (6 pole) |
| Voltage | 230/460V or 460V, three phase, 60 Hz |
| Mounting and shaft | Foot mount (T, TC, TS, TSC) or close-coupled pump (JM, JP) |
| Frame | 284 through 449, including L449 long frames |
Each product page lists the exact catalog number, full-load amps, NEMA nominal efficiency, power factor, NEMA design, frame, and weight so you can confirm the fit before you order.
