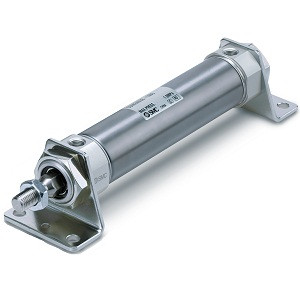

SMC 10-CM2F40-125Z | Clean Room Standard Air Cylinder CM2 Series 40mm Bore 125mm Stroke Front Flange Mount Double-Acting Auto-Switch Ready Stainless Tube
SMC
$96.35
The SMC 10-CM2F40-125Z is a clean room specification standard air cylinder from the CM2 series with a 40mm bore, 125mm stroke, and front flange mounting. Part number decoded: CM2 = standard round body stainless tube, F = front flange, 40 = bore mm, 125 = stroke mm, Z = auto-switch groove. This variant extends the CM2F40-100Z by 25mm of additional stroke while maintaining the same front flange mounting interface and 40mm bore force output.
At 754N force through 125mm of travel, this cylinder handles extended-reach operations where the front flange mount provides rigid, alignment-preserving installation. The 125mm stroke fills the gap between the 100mm and 160mm CM2F40 variants, serving applications where precise stroke selection is critical. The front flange bolt pattern is identical across all CM2F40 variants for drop-in stroke changes during equipment commissioning or retrofit. The stainless steel tube provides corrosion resistance in controlled clean room environments.
The CM2F40-125Z bridges the gap between CM2F40-100Z and CM2F40-160Z. For basic mount at the same bore/stroke, use CM2B40-125Z. All CM2F40 variants share the same flange bolt pattern for easy stroke changes. All CM2 40mm variants operate at 0.05 to 1.0 MPa with 1/4" ports. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant. Compatible with D-A auto switches and AS speed controllers for complete motion control integration.
- Series:
- 10-CM2-Z (Clean Room)
- Cylinder Type:
- Standard Round Body (Stainless Tube)
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 40mm
- Stroke:
- 125mm
- Mounting:
- Front Flange (F)
- Piston:
- Magnetic
- Auto-Switch:
- Compatible (Z groove)
- Force at 0.6 MPa:
- ~754N
- Port Size:
- 1/4"
- Tube Material:
- Stainless Steel
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
