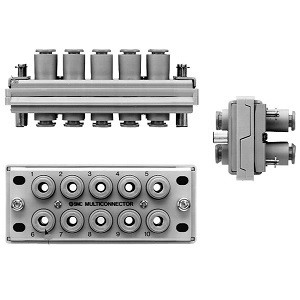

SMC 10-KDM10S-08 | Clean Room Rectangular Multi-Connector KDM Series 10 Port 8mm Tube OD Manifold Fitting Block

The SMC 10-KDM10S-08 is a clean room specification rectangular multi-connector from the KDM series. Part number decoded: KDM = rectangular multi-connector, 10 = 10-port configuration, S = specific body style, 08 = 8mm tube outer diameter. The KDM series provides a compact manifold block that consolidates multiple tube connections into a single, organized connection point, dramatically reducing the complexity and clutter of multi-tube clean room pneumatic systems.

Why use a multi-connector in clean rooms? Equipment with 10 or more pneumatic connections using individual fittings creates a tangle of tubes that is difficult to route cleanly, prone to accidental disconnection during maintenance, and challenging to reconnect correctly after servicing. The KDM10S-08 consolidates all 10 connections into one rectangular block that connects and disconnects as a single unit. This reduces tube routing complexity, eliminates reconnection errors, speeds equipment changeover and maintenance, and creates a cleaner installation with fewer exposed connection points that could generate particles.

The 10-port configuration with 8mm tube OD handles mid-flow clean room pneumatic circuits. For fewer ports, the KDM series offers 6-port and 8-port options. For larger tube sizes, 10mm and 12mm OD variants are available. For smaller systems, 4mm and 6mm tube versions reduce the connection footprint. The rectangular form factor enables side-by-side stacking of multiple KDM blocks for high-density pneumatic distribution panels. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
