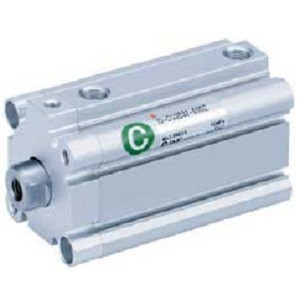

SMC 11-CDQ2B32-10DZ Clean Room Compact Cylinder CQ2 Series 32mm Bore 10mm Stroke Double-Acting Both Ends Tapped Auto-Switch Ready
SMC
$59.15
The SMC 11-CDQ2B32-10DZ is a clean room specification compact cylinder from the CQ2 series with 32mm bore and extremely short 10mm stroke. Part number decoded: CDQ2 = CQ2 series double acting, B = both ends tapped mounting, 32 = 32mm bore, 10 = 10mm stroke, D = specific option (typically through-hole on rod side or double rod), Z = clean room auto-switch groove. The 11- prefix designates enhanced clean room grade.
A 32mm bore with only 10mm stroke creates a high-force, short-travel actuator producing approximately 48N at 0.6 MPa in a minimal package. This configuration is ideal for clamping operations where significant force must be applied over a very short distance holding workpieces during machining, securing components during bonding or inspection, or actuating short-stroke press mechanisms. The compact CQ2 square body minimizes the space consumed by the actuator, critical when many clamps are packed into a fixture with tight spacing.
The CDQ2B32-10DZ provides maximum CQ2 clamping force in minimum stroke. For longer travel at 32mm bore, the CQ2 series offers strokes up to 100mm. For higher clamping force, the CQ2B40 (40mm bore) increases output to approximately 75N. For guided clamping to prevent side loads, the CQS or CQSX compact guided variants provide anti-rotation. The D option may provide through-hole rod-side access for tooling clearance. Auto switches mount in the Z groove. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CQ2-Z (Clean Room)
- Cylinder Type:
- Compact (Square Body)
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 32mm
- Stroke:
- 10mm
- Mounting:
- Both Ends Tapped (B)
- Option:
- D
- Auto-Switch:
- Compatible (Z Groove)
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
