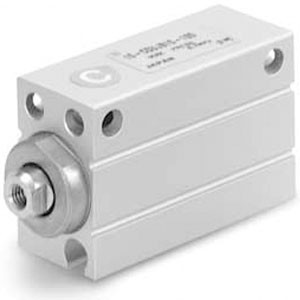

SMC 11-CDUJB10-10D | Clean Room Mini Free Mount Cylinder CUJ Series 10mm Bore 10mm Stroke Double-Acting
SMC
$33.30
The SMC 11-CDUJB10-10D is a clean room specification mini free mount cylinder from the CUJ series. Part number decoded: CDUJ = CUJ series double acting, B = basic mount type, 10 = 10mm bore, 10 = 10mm stroke, D = specific option. The CUJ series is one of SMC's smallest cylinder families, designed for micro-automation tasks in confined spaces where standard compact cylinders are too large.
The CUJ mini free mount design allows the cylinder to be installed in virtually any orientation without dedicated mounting brackets. The "free mount" concept means the cylinder body can be clamped, bonded, or secured using minimal hardware, providing maximum installation flexibility in tight equipment interiors. At 10mm bore, the cylinder generates approximately 4.7N at 0.6 MPa suited for micro-component handling, small sensor positioning, light gate actuation, and miniature gripper operations in clean room semiconductor and medical device assembly.
The CDUJB10-10D provides the base CUJ configuration at 10mm bore with 10mm stroke. For the same bore with pre-mounted auto-switches and specific cable options, the CDUJB10-10D-F8BLS adds factory-installed sensing. For smaller actuation, the CUJ offers 4mm, 6mm, and 8mm bore options. For larger force in the mini cylinder range, the CDUJB16 (16mm bore) and CDUJB20 (20mm bore) increase output while maintaining the free mount design. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CUJ (Clean Room)
- Cylinder Type:
- Mini Free Mount
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 10mm
- Stroke:
- 10mm
- Mounting:
- Free Mount (B)
- Option:
- D
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
