Description

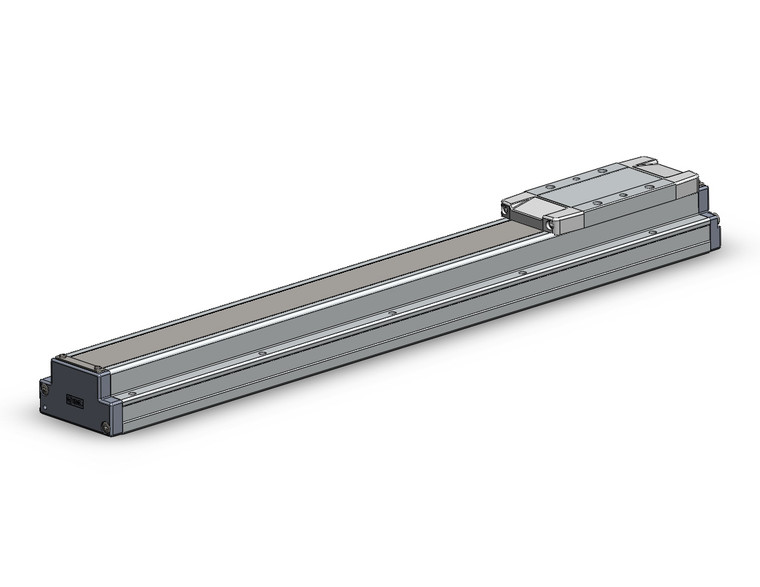

11-LEFG, Support Guide, Ball Screw, Clean Room
An LEFG guide shares dimensions with the LEFS and LEFB body, but has no motor. It functions as a support for a significantly overhanging workpiece that is moved by a driving slider. The guide is equipped with a seal band that prevents the ingress of grease and other external foreign matter. A typical application is in support of a large loading platform in a multi-axis pick-and-place operation
- Body sizes and strokes match the availability of driven slides- Mounting pitches available to match ball or belt screw drives
- Same dynamic allowable moment (roll, pitch, yaw) as driven sliders
- Clean series available with vacuum port
-
