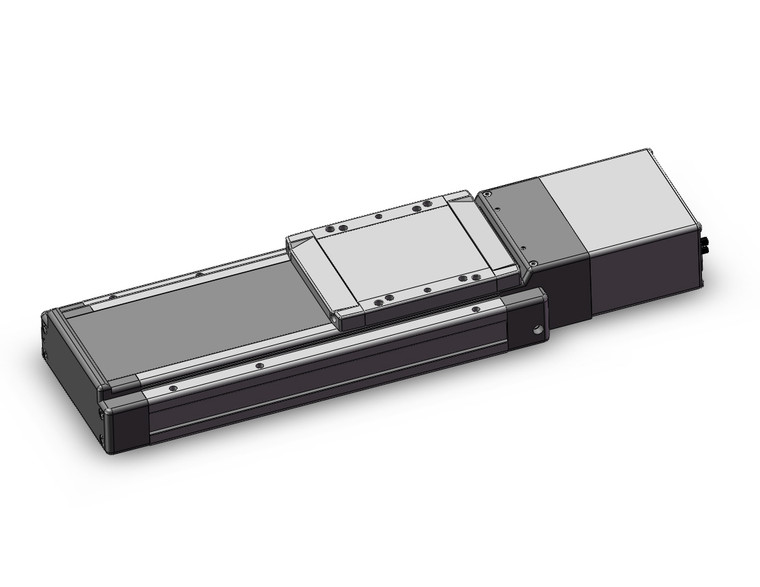

SMC 11-LEJSH63S7B-400D-R2 electric actuator hi rigidity rodless slider, ball screw

SMC 11-LEJSH63S7B-400D-R2 11-LEJS Series Clean Room Specification Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
11-LEJSH63S7B-400D-R2
Availability:
Contact us to confirm availability and lead times.
$5,100.00
Condition:
New
Current Stock:
Description

11-LEJS Series Clean Room Specification Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor

  • Low-profile/low center of gravity: Height dimension reduced by approx. 36% (Reduced by 32 mm);
  • Max. work load: 85 kg;
  • Positioning repeatability: ±0.02 mm;
  • Max. acceleration/deceleration: 20000 mm/S2;
  • Compatible controllers: LECSA LECSB LECSC LECSS
    • Additional Information
    Clean Series:
    Vacuum Suction Type
    Accuracy:
    High Precision Type
    Size:
    63
    Motor Type:
    AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
    Lead:
    Size40:8mm, Size63:10 mm
    Stroke:
    Stroke 400 mm
    Motor Option:
    Without Lock
    Vacuum Port:
    Both Left And Right
    Cable Type:
    Robotic Cable(Flexible Cable)
    Cable Length:
    2 m
    Driver Type:
    Without Driver
    I/O Cable Length:
    Without Cable
