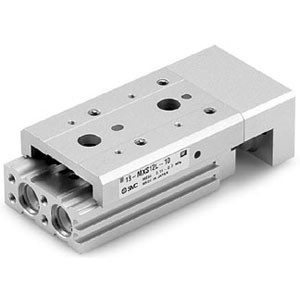

SMC 13-MXS12L-100A-M9NL | Clean Room Air Slide Table MXS Series 12mm Bore 100mm Stroke L-Type A-Port Auto-Switch
SMC
$650.60
The SMC 13-MXS12L-100A-M9NL is a clean room specification air slide table from the MXS series with L-type body, 100mm extended stroke, and auto-switch. Part number decoded: MXS = MXS series, 12 = 12mm bore, L = L-type body, 100 = 100mm stroke, A = A-port, M9NL = pre-mounted auto-switch (M9N with L lead wire). The 100mm stroke is among the longest for MXS12L.
The L-type body with 100mm stroke provides extended-reach guided motion in the MXS12 platform. The M9NL auto-switch provides position feedback for PLC sequence control. The A-port configuration routes air supply connections in a specific direction to avoid interference with adjacent equipment. At 12mm bore with 100mm travel, this slide table handles medium-distance component transfer and positioning operations in clean room equipment.
The MXS12L-100A-M9NL provides long-stroke L-type MXS12 with sensing. For the same stroke with M9NZ switch variant, the MXS12L-100A-M9NZ provides an alternative. For shorter L-type MXS12 strokes, the MXS12L-10AS and MXS12L-30AT provide compact options. For the MXQ comparison at 12mm bore, the MXQ12L provides recirculating ball guide slides. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 12mm
- Stroke:
- 100mm
- Body Type:
- L
- Port:
- A
- Auto-Switch:
- M9NL Pre-Mounted
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
