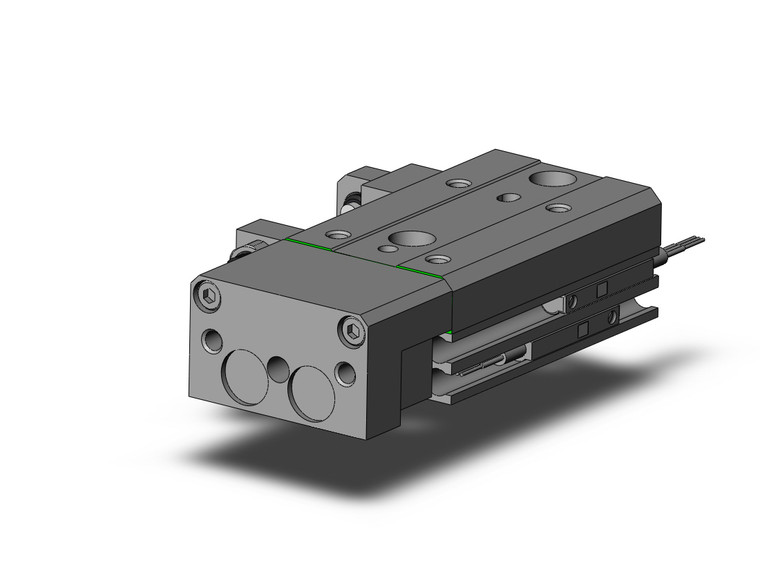

SMC 13-MXS6-20A-M9PSAPC 13-MXS Series Clean Series Air Slide Table
SMC
$429.75
The SMC 13-MXS6-20A-M9PSAPC 13-MXS Series Clean Series Air Slide Table is designed for precision and efficiency. This air slide table integrates seamlessly with a worktable, offering a compact and space-saving solution. Its standout feature is the smooth, stable movement achieved through the use of a cross roller guide, ensuring there is no looseness during operation. Ideal for applications requiring precise linear motion, this air slide table is a reliable choice for enhancing productivity in clean environments.
- Clean Series:
- Vacuum Suction Type (Special Treatment On Guide)
- Bore Size:
- Bore Size 6 mm
- Port Thread Type:
- M-thread( 6 To 16),Rc( 20, 25)
- Symmetric:
- Standard Type
- Cylinder Stroke:
- Standard Stroke 20 mm
- Adjuster Option:
- Both Ends Rubber Stopper
- Functional Option:
- Standard Type
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
