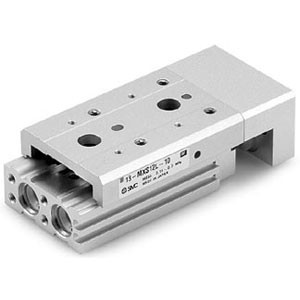

SMC 13-MXS6-20A-A90L | Clean Room Air Slide Table MXS Series 6mm Bore 20mm Stroke A-Port A90L Switch Bracket
SMC
$415.25
The SMC 13-MXS6-20A-A90L is a clean room specification air slide table from the MXS series with 6mm bore and A90L switch bracket. Part number decoded: MXS = MXS series, 6 = 6mm bore, 20 = 20mm stroke, A = A-port, A90L = auto-switch bracket with L lead wire (different bracket model from the A93).
The 20mm stroke provides double the travel of the MXS6-10AT, extending the micro-slide's reach. The A90L switch bracket is a different mounting accessory from the A93, typically providing a different switch orientation or mounting position on the slide body. The selection between A90 and A93 brackets depends on the available space around the actuator and the preferred switch cable routing direction.
The MXS6-20A-A90L provides a 20mm micro-slide with A90L bracket sensing. For the A93 bracket alternative at 6mm bore, the MXS6-10AT-A93 provides 10mm stroke with T-stopper. For pre-mounted auto-switch without brackets, the MXS6L series with M9P/M9N suffixes provides direct-mount switch options. For 8mm bore micro-slides, the MXS8 steps up force slightly. Auto-switches mount on A90L bracket (sold separately). Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 6mm
- Stroke:
- 20mm
- Port:
- A
- Auto-Switch:
- A90L Bracket
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
