SMC 25A-AMD850-20 | Secondary Battery Compatible Micro Mist Separator AMD Series Body 850 2" Port Maximum Capacity
SMC
$1,658.41

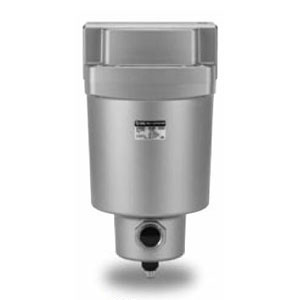

The SMC 25A-AMD850-20 is a secondary battery compatible micro mist separator from the AMD series in the largest 850 body size. Part number decoded: AMD = AMD micro mist separator, 850 = body size 850 (largest), 20 = 2" port. The 25A- prefix designates secondary battery manufacturing compatibility.
Body size 850 with 2" port provides the absolute maximum micro mist filtration capacity in the AMD range. This handles the highest compressed air flow volumes for large-scale secondary battery production facilities with multiple production lines. The 2" port connection ensures minimal pressure drop at maximum flow rates. Sub-micron oil mist removal at this capacity level supports facility-wide clean air supply.
The 25A-AMD850-20 provides maximum micro mist capacity for large battery facilities. For the flanged port version, the 25A-AMD850-F14 provides F14 connection. For the smaller 550C body, the 25A-AMD550C-06 provides moderate capacity. For the upstream mist separator, the 25A-AM550C provides coarser filtration. RoHS compliant.
- Series:
- 25A-AMD (Secondary Battery)
- Product Type:
- Micro Mist Separator
- Body Size:
- 850 (Largest)
- Port:
- 2" (20)
- Filtration:
- Sub-Micron Oil Mist
- Capacity:
- Maximum
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
