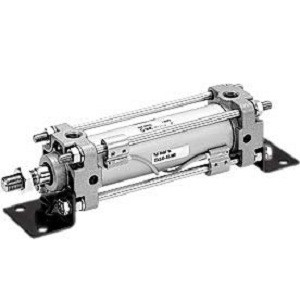

SMC 25A-CDA2D40-75Z | Secondary Battery Compatible Air Cylinder CA2 Series 40mm Bore 75mm Stroke Double Clevis Mount
SMC
$255.51
The SMC 25A-CDA2D40-75Z is a secondary battery compatible air cylinder from the CA2 series with double clevis mount. Part number decoded: CDA2 = CA2 double acting, D = double clevis mount (clevis on both ends), 40 = 40mm bore, 75 = 75mm stroke, Z = auto-switch groove.
The D (double clevis) mount provides pivoting connections at both the cap end and rod end of the cylinder, accommodating angular motion at both attachment points. This is essential for applications where neither the cylinder mounting point nor the workpiece attachment point are fixed in a straight line both pivot freely. Common applications include linkage mechanisms, gate operators, and any application with complex kinematic paths in secondary battery production equipment.
The 25A-CDA2D40-75Z provides full-pivot actuation at 40mm bore. For single clevis (C mount) at the same bore, the 25A-CDA2C40-75Z-M9NL provides rod-end pivot only. For D-mount at 63mm bore, the 25A-CDA2D63-250Z provides larger force. For basic foot mount, the 25A-CDA2B40-80Z provides fixed mounting. Auto switches mount in the Z groove. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Double Clevis (D)
- Bore:
- 40mm
- Stroke:
- 75mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
