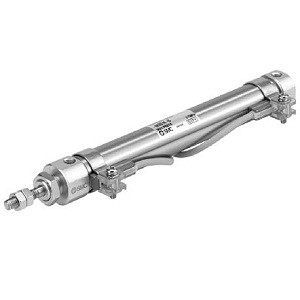

SMC 25A-CDJ2B10-40Z-B 25A-CJ2-Z Series Compatible With Secondary Batteries Air Cylinder

SMC 25A-CDJ2B10-40Z-B | Secondary Battery Compatible Air Cylinder CJ2 Series 10mm Bore 40mm Stroke Basic Mount

SMC
SKU:
25A-CDJ2B10-40Z-B
Availability:
Factory Stock
$30.90
Condition:
New
Current Stock:
Description

The SMC 25A-CDJ2B10-40Z-B is a secondary battery compatible air cylinder from the CJ2 mini round body series with 40mm stroke. Part number decoded: CDJ2 = CJ2 double acting, B = basic, 10 = 10mm bore, 40 = 40mm stroke, Z = auto-switch groove, B = body option.

The 40mm stroke at 10mm bore provides a moderate-travel mini cylinder. Compared to the 100mm variant, this provides 60% less travel in a proportionally shorter overall length. At approximately 4.7N at 0.6 MPa, this handles light actuation through a standard stroke distance for sensor positioning, pin driving, and light component transfer.

The 25A-CDJ2B10-40Z-B provides mid-stroke CJ2 at 10mm bore. For longer stroke, the CDJ2B10-100Z provides 100mm. For the 85mm stroke with A-port, the CDJ2B10-85AZ provides extended travel. For auto-switch, add M9BWL/M9PL suffixes. For 16mm bore, the CDJ2B16 provides increased force. The Z groove accepts auto switches. RoHS compliant.

Additional Information
Series:
25A-CJ2-Z (Secondary Battery)
Cylinder Type:
Mini Round Body
Action:
Double-Acting
Rod:
Single Rod
Bore:
10mm
Stroke:
40mm
Body:
B
Auto-Switch:
Compatible (Z Groove)
Application:
Secondary Battery Manufacturing
Certifications:
RoHS
