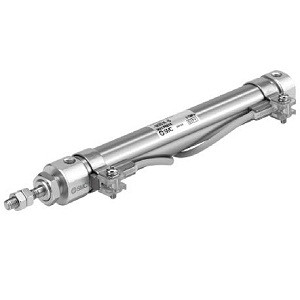

SMC 25A-CDJ2F16-75AZ-B 25A-CJ2-Z Series Compatible With Secondary Batteries Air Cylinder

SMC 25A-CDJ2F16-75AZ-B | Secondary Battery Compatible Air Cylinder CJ2 Series 16mm Bore 75mm Stroke F-Flange A-Port

SMC
SKU:
25A-CDJ2F16-75AZ-B
Availability:
Factory Stock
$50.30
Condition:
New
Current Stock:
Description

The SMC 25A-CDJ2F16-75AZ-B is a secondary battery compatible air cylinder from the CJ2 series with F-flange mount. Part number decoded: CDJ2 = CJ2 double acting, F = flange mount, 16 = 16mm bore, 75 = 75mm stroke, A = A-port, Z = auto-switch groove, B = body.

The F (flange) mount provides rigid concentric mounting for the CJ2 mini cylinder, ensuring precise alignment of the piston rod with the equipment's mechanical axis. At 16mm bore with 75mm stroke, this provides maximum CJ2 force with rigid mounting for precision light pressing and positioning operations in secondary battery production.

The 25A-CDJ2F16-75AZ-B provides flange-mount CJ2 at maximum bore. For E-mount at the same bore, the CDJ2E16-100Z provides end-plate mounting. For L-mount, the CDJ2L10 provides lock-up options. For B-mount at 16mm, the CDJ2B16-150Z provides basic mounting. For CG1 flange at larger bore, the CDG1BN63-50FZ provides increased force. Auto switches mount in the Z groove. RoHS compliant.

Additional Information
Series:
25A-CJ2-Z (Secondary Battery)
Cylinder Type:
Mini Round Body
Action:
Double-Acting
Rod:
Single Rod
Mounting:
Flange (F)
Bore:
16mm
Stroke:
75mm
Port:
A
Body:
B
Auto-Switch:
Compatible (Z Groove)
Application:
Secondary Battery Manufacturing
Certifications:
RoHS
