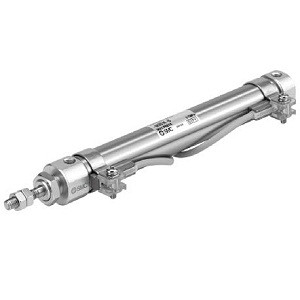

SMC 25A-CDJ2M16-60Z-M9BWL-B | Secondary Battery Compatible Air Cylinder CJ2 Series 16mm Bore 60mm Stroke M-Mount Auto-Switch
SMC
$137.10
The SMC 25A-CDJ2M16-60Z-M9BWL-B is a secondary battery compatible air cylinder from the CJ2 series with M-mount and auto-switch at 16mm bore. Part number decoded: CDJ2 = CJ2 double acting, M = M-mount (panel mount), 16 = 16mm bore, 60 = 60mm stroke, Z = auto-switch groove, M9BWL = pre-mounted auto-switch, B = body.
The M-mount at maximum CJ2 bore with M9BWL switch provides panel-mount actuation with position sensing. At 16mm bore with 60mm stroke, this handles light to medium panel-mounted actuation with PLC feedback for secondary battery production equipment where the cylinder protrudes through a partition or mounting panel.
The 25A-CDJ2M16-60Z-M9BWL-B provides sensored M-mount CJ2 at maximum bore. For M-mount at 10mm bore, the CDJ2M10 provides smaller options. For B-mount at 16mm with long stroke, the CDJ2B16-150Z provides basic mounting. For D-mount at 16mm, the CDJ2D16 provides alternative mounting with non-rotating option. RoHS compliant.
- Series:
- 25A-CJ2-Z (Secondary Battery)
- Cylinder Type:
- Mini Round Body
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- M (Panel Mount)
- Bore:
- 16mm
- Stroke:
- 60mm
- Body:
- B
- Auto-Switch:
- M9BWL Pre-Mounted
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
