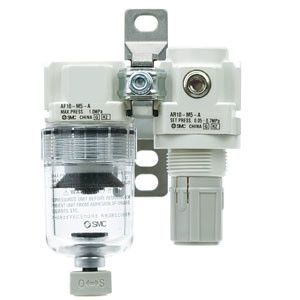

SMC AC10B-M5CG-A AC10B-A Series Air Combination
SMC
$57.20
AC10B-A Series Air Combination
- Made to order added [New];
- Better visibility & environmental resistance;
- Easy replacement of the element; The element and the bowl are in one piece.; Replacement can be done in hand.;
- Reduced required maintenance space: Max.46% reduction;
- Regulator: Set pressure 0.05 to 0.85 Mpa setting, 0.02 to 0.2 Mpa setting;
- Selection of pressure gauges; Square embedded type pressure gauge, Round type pressure gauge,Digital pressure switch
- Option a:
- Float Type Auto Drain N.C.(Normally Closed)Drain Port Is Closed When Pressure Is Not Applied
- Option b:
- Round Type Pressure Gauge (Without Limit Indicator)
- Attechment:
- Without Attachment
- Semi-Standard a:
- 0.05 to 0.7 MPa Setting, Polycarbonate Bowl
- Semi-Standard b:
- Relieving Type, Flow Direction: Left to Right, Name Plate, Caution Plate For Bowl, And Pressure Gauge In Imperial Units: MPa
