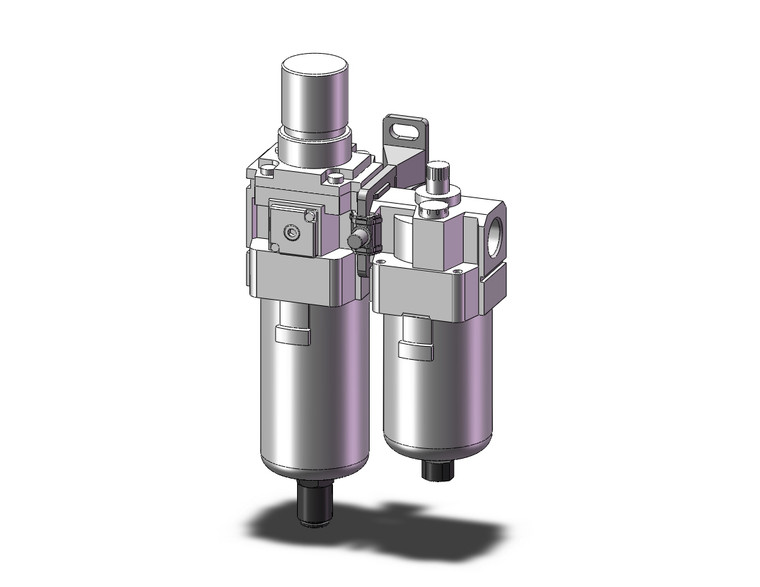

SMC AC40A-N04D-3Z-B Modular F.R.L.

AC20A-B to AC60A-B, Filter Regulator and Lubricator

SMC S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

- Filter, regulator, and lubricator unit
- Clean looking, modular design
- One-piece element and bowl for easy replacement (AW)
- Transparent bowl guard for 360 degree visibility
- Embedded gauge and pressure switch options available
- Rc(PT), G(PF) or NPT threads
