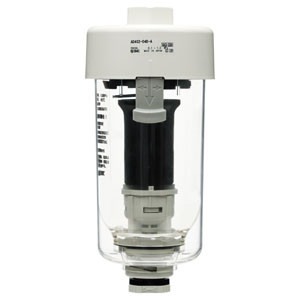

SMC AD402-03C-V-A AD402-A Series Auto Drain Valve

SMC AD402-03C-V-A AD402-A Series Auto Drain Valve

SMC
SKU:
AD402-03C-V-A
Availability:
Factory Stock
$57.20
Condition:
New
Current Stock:
Description

AD402-A Series Auto Drain Valve

  • Higher resistance to foreign matter;
  • Increase in condensate discharge; Drain discharge: Max.100 cm3/cycle (3 times compared with the current model);
  • Better environmental resistance: Transparent bowl guard can protect the inner bowl!;
  • Better visibility: 360°;
  • Reduced the weight by 22%;
  • Reduced required maintenance space;
  • Easier maintenance; One-touch mounting and removal of the bowl is possible without using a tool;
  • Bowl material can be selected according to the operating environments
    • Additional Information
    Piping Direction:
    Vertical Piping
    Thread Type:
    Rc
    Port Size:
    3/8
    Auto Drain Type:
    N.C.(Normally Closed),Drain Port Is Closed When Pressure Is Not Applied
    Bowl:
    Polycarbonate Bowl
    Flow Direction:
    IN Port: Left Side
    Valve:
    With Bleed Valve
    Pressure Unit:
    Name Plate And Caution Plate For Bowl In SI Units
