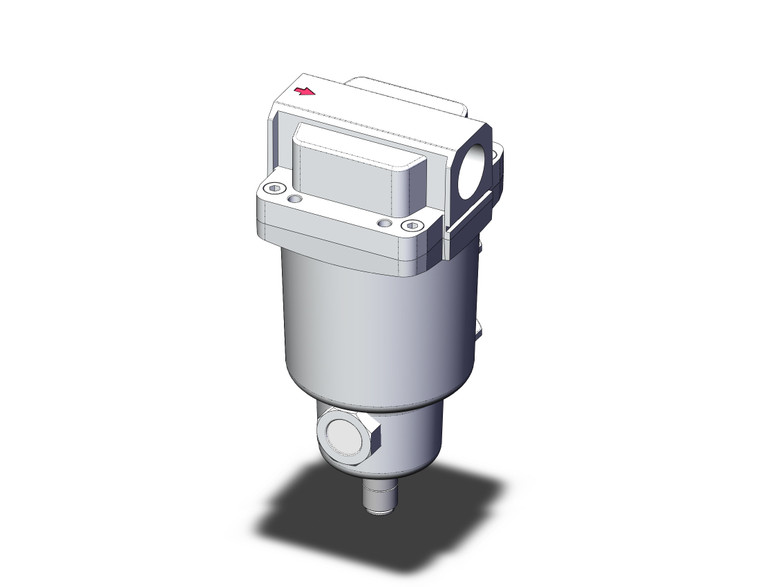

SMC AFF22C-N10C Air Filter, Main Line
- SKU:
- AFF22C-N10C
- Condition:
- New
- Availability:
- In stock: 30
- Body Size:
- 22C [123SCFM (3, 700l/Min), Approx. Compressor Output 30HP, (22kW)]
- Thread:
- N (NPT)
- Port Size:
- 10 (1)
- Accessory:
- None
- Auto Drain:
- C (N.C. Auto Drain)
- Rubber Material:
- Standard
- Air Pressure:
- Standard
- Drain Guide:
- None
- IN-OUT Direction:
- Standard
- Pressure Switch 125VAC, 30VDC:
- None
- Element Service Indicator:
- None
- Pressure Switch 30V:
- None
- Degreasing Wash:
- None
- Made-to-Order:
- None
Description
AFF2C-22C/AFF37B-75B, Main Line Filter
The legacy AFF series is an excellent first stage in an air purification scheme. This coarse (3 m) filter removes foreign matter and droplets to protect downstream dryers and extend the life of more precise filters. Units are easily serviced, and dirty elements can be disposed of while handling only the filter bowl.
- Particulate filtration, coarse droplet removal- Modular connection capable AFF2C~22C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT or G)
- Nominal filtration rating: 1 m (99% efficiency)
-
