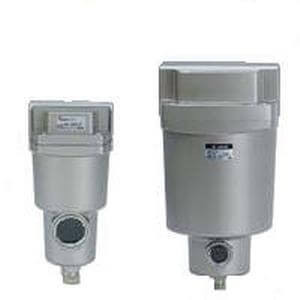

SMC AM250C-N03 Mist Separator

(No reviews yet) Write a Review
SKU:
AM250C-N03
MPN:
AM250C-N03
Condition:
New
Availability:
In stock: 27
Body Size:
250C [26SCFM (750l/Min), Approx. Compressor Output 5HP, (3.7kW)]
Thread:
N (NPT)
Port Size:
03 (3/8)
Accessory:
None
Auto Drain:
Drain Cock w/o Auto Drain
Rubber Material:
Standard
Air Pressure:
Standard
Drain Guide:
None
IN-OUT Direction:
Standard
Pressure Switch 125VAC, 30VDC:
None
Element Service Indicator:
None
Pressure Switch 30V:
None
Degreasing Wash:
None
Made-to-Order:
None
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 mist separator
  • SMC AM250C-N03 Mist Separator
  • SMC AM250C-N03 Mist Separator
  • SMC AM250C-N03 Mist Separator
  • SMC AM250C-N03 Mist Separator
  • SMC - AM250C-N03 - AM250C-N03 Mist Separator - 750 L/min Maximum Flow Rate, 145 psi Maximum Operating Pressure, 3/8 NPT Ports, Manual Drain
  • SMC AMD350-06C
$59.85

Description

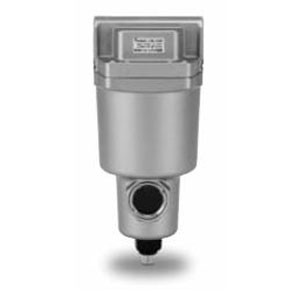

AM150C-550C/AM650-850, Coalescing Mist Separator

The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.

- Particulate filtration, oil mist separation
- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-
