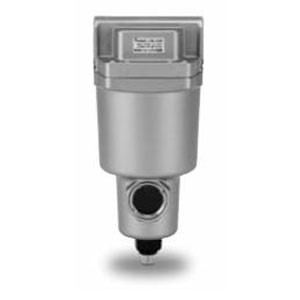

SMC AM550C-N10 Mist Separator
- SKU:
- AM550C-N10
- Condition:
- New
- Availability:
- In stock: 11
- IN-OUT Direction:
- Standard
- Air Pressure:
- Standard
- Rubber Material:
- Standard
- Auto Drain:
- Drain Cock w/o Auto Drain
- Port Size:
- 1
- Thread:
- NPT
- Body Size:
- 3, 700l/Min, Approx. Compressor Output 30HP, 22kW
Description
AM150C-550C/AM650-850, Coalescing Mist Separator
The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.
- Particulate filtration, oil mist separation- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-
