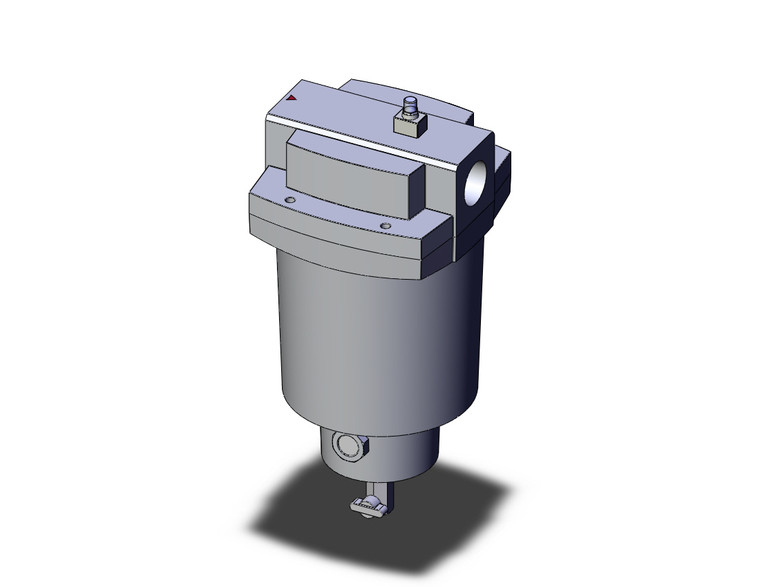

SMC AM850-F14-T Mist Separator
- SKU:
- AM850-F14-T
- Condition:
- New
- Availability:
- In stock: 42
- Body Size:
- 850 [424 SCFM (12,000l/Min), Approx. Compressor Output 100HP, (75kW)]
- Thread:
- F (G)
- Port Size:
- 14 (1 1/2)
- Accessory:
- None
- Auto Drain:
- Drain Cock w/o Auto Drain
- Rubber Material:
- Standard
- Air Pressure:
- Standard
- Drain Guide:
- None
- IN-OUT Direction:
- Standard
- Pressure Switch 125VAC, 30VDC:
- None
- Element Service Indicator:
- T (Yes)
- Pressure Switch 30V:
- None
- Degreasing Wash:
- None
- Made-to-Order:
- None
Description
AM150C-550C/AM650-850, Coalescing Mist Separator
The legacy series AM mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter.
- Particulate filtration, oil mist separation- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 3
-
