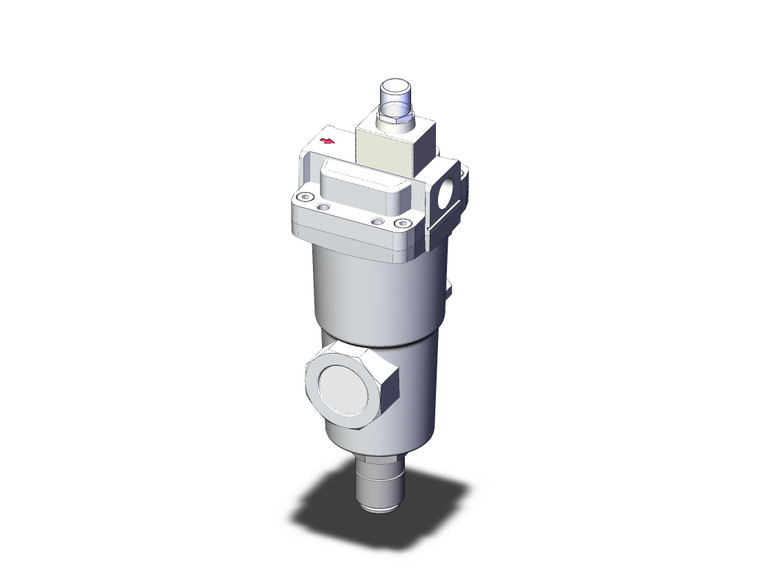

SMC AMD150C-N02C-T Micro Mist Separator

(No reviews yet) Write a Review
SKU:
AMD150C-N02C-T
MPN:
AMD150C-N02C-T
Condition:
New
Body Size:
150C [7SCFM (200l/Min), Approx. Compressor Output 3HP, (2.2kW)]
Thread:
N (NPT)
Port Size:
02 (1/4)
Accessory:
None
Auto Drain:
C (N.C. Auto Drain)
Rubber Material:
Standard
Air Pressure:
Standard
Drain Guide:
None
IN-OUT Direction:
Standard
Pressure Switch 125VAC, 30VDC:
None
Element Service Indicator:
T (Yes)
Pressure Switch 30V:
None
Degreasing Wash:
None
Made-to-Order:
None
$90.30

Description

AMD150C-550C/AMD650-850, Coalescing Micro Mist Separator

The legacy series AMD micro mist separators range from 1/8 to 2 and feature a rugged aluminum housing. These coalescing filters are nominally rated at 0.01 micron for a second stage of oil removal after a particulate filter and a coarser coalescing unit.

- Particulate filtration, oil mist separation
- Modular connection capable AM150C~550C
- Optional element life indicator
- Available port sizes: 1/8 ~2 (PT, NPT, or G)
- Nominal filtration rating: 0.3 2
-

Series Catalog

AutoCAD File
