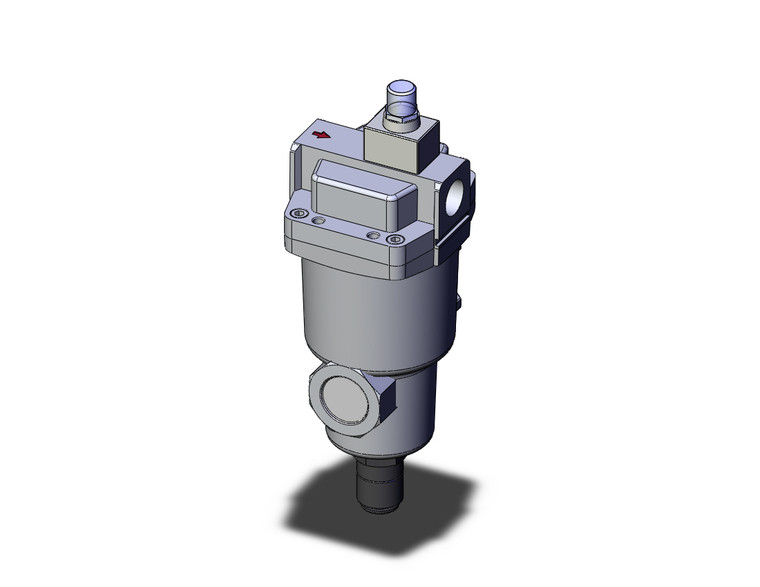

SMC AMH250C-N03D-T Micro Mist Separator W/Pre-Filter
- SKU:
- AMH250C-N03D-T
- Condition:
- New
- Availability:
- In stock: 49
- Body Size:
- 500l/Min, Approx. Compressor Output 5HP, 3.7kW
- Thread:
- NPT
- Port Size:
- 3/8
- Auto Drain:
- N.O. Auto Drain
- Rubber Material:
- Standard
- Air Pressure:
- Standard
- IN-OUT Direction:
- Standard
- Element Service Indicator:
- Yes
Description
AMH150C-550C/AMH650-850, Coalescing Micro Mist Separator with Prefilter
Series AMH is a high precision, micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying/cleaning pneumatic measurement instruments (air micrometer) and precision parts.
-
- Micro mist separator w/prefilter- Modular connection is possible with AMH150C to 550C
- Port size: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2
- Option include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash
