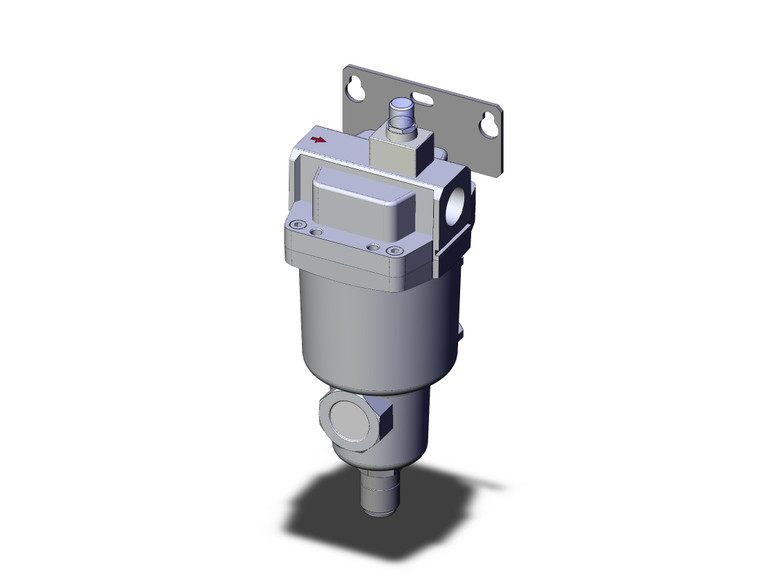

SMC AMH350C-N04BC-T Micro Mist Separator W/Pre-Filter

(No reviews yet) Write a Review
SKU:
AMH350C-N04BC-T
MPN:
AMH350C-N04BC-T
Condition:
New
Availability:
In stock: 13
Body Size:
1,000l/Min, Approx. Compressor Output 10HP, 7.5kW
Thread:
NPT
Port Size:
1/2
Accessory:
Bracket
Auto Drain:
N.C. Auto Drain
Rubber Material:
Standard
Air Pressure:
Standard
IN-OUT Direction:
Standard
Element Service Indicator:
Yes
$185.50

Description

AMH150C-550C/AMH650-850, Coalescing Micro Mist Separator with Prefilter

Series AMH is a high precision, micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying/cleaning pneumatic measurement instruments (air micrometer) and precision parts.
-

- Micro mist separator w/prefilter
- Modular connection is possible with AMH150C to 550C
- Port size: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2
- Option include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash

Series Catalog

AutoCAD File
