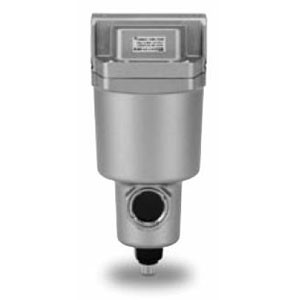

SMC AMH550C-N10C-T Micro Mist Separator W/Pre-Filter
- SKU:
- AMH550C-N10C-T
- Condition:
- New
- Body Size:
- 550C [131SCFM (3,700l/Min), Approx. Compressor Output 30HP, (22kW)]
- Thread:
- N (NPT)
- Port Size:
- 10 (1)
- Accessory:
- None
- Auto Drain:
- C (N.C. Auto Drain)
- Rubber Material:
- Standard
- Air Pressure:
- Standard
- Drain Guide:
- None
- IN-OUT Direction:
- Standard
- Pressure Switch 125VAC, 30VDC:
- None
- Element Service Indicator:
- T (Yes)
- Pressure Switch 30V:
- None
- Degreasing Wash:
- None
- Made-to-Order:
- None
Description
AMH150C-550C/AMH650-850, Coalescing Micro Mist Separator with Prefilter
Series AMH is a high precision, micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying/cleaning pneumatic measurement instruments (air micrometer) and precision parts.
-
- Micro mist separator w/prefilter- Modular connection is possible with AMH150C to 550C
- Port size: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2
- Option include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash
