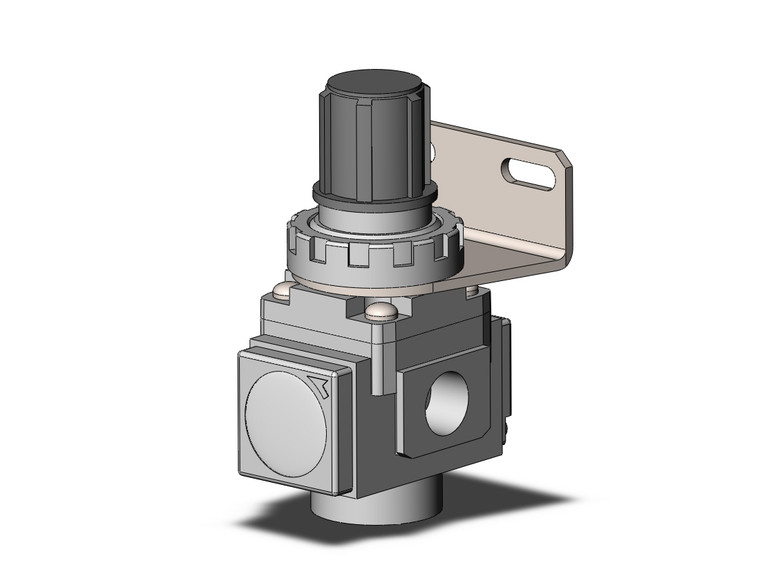

SMC AR20-N02BE-RYZ-B Regulator
- SKU:
- AR20-N02BE-RYZ-B
- Condition:
- New
- Body Size:
- 20
- Backflow Function:
- None
- Thread:
- N (NPT)
- Port:
- 02 (1/4)
- Option:
- BE (B + E)
- Semi-Standard:
- RYZ (R + Y + Z)
Description
AR20(*)-B to AR60(*)-B, Regulator & Regulator w/Backflow Function
Air Regulator Series AR-B have been updated to the new urban white base color for a clean modern look. The AR-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AR-A while maintaining panel mounting interchangeability with the previous AR models. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting. The modular design of the AR-B series connects with other SMC air preparation equipment of similar size. The new AR-B is available in six body sizes with piping from 1/8 to 1 in Rc, NPT and G thread.
- Modular type regulator.- Available with built-in backflow mechanism.
- Optional embedded pressure gauge.
- Rc, NPT or G(PF) threads.
- Diaphragm is made of ozone resistant rubber material (HNBR).
-
