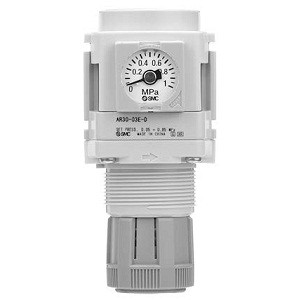

SMC AR20-N02BG-Z-D AR-D Modular Air Regulator, 1/4 NPT, Bracket and Round Gauge, 7 to 123 psi, Relieving
SMC
$32.75
The SMC AR20-N02BG-Z-D is a body size 20 modular air regulator from SMC's AR-D series, configured with 1/4 NPT ports, a mounting bracket, and a round pressure gauge with limit indicator. It holds downstream pressure anywhere from 0.05 to 0.85 MPa (7 to 123 psi) with a relieving exhaust, and the Z option puts psi and °F on the product label with a dual-scale MPa/psi gauge, so it reads correctly on North American equipment straight out of the box.
Replacing an AR20-N02BG-Z-A? SMC has discontinued the AR-A modular regulator series and replaced it with the AR-D series. The AR20-N02BG-Z-D carries the same size, thread, port, bracket, gauge, and psi-unit options, and raises the maximum set pressure from 0.7 MPa to 0.85 MPa. Contact Automation Distribution to confirm fit before swapping on an existing panel.
Key Features
- Wide set range: 0.05 to 0.85 MPa (7 to 123 psi) covers most pneumatic machine and actuator supply pressures.
- Bracket and gauge included: ships with mounting bracket and a round type pressure gauge with limit indicator, ready for panel or wall mounting.
- psi labeling: product label in psi and °F with an MPa/psi dual-scale gauge.
- Easier adjustment: the redesigned AR-D knob is easy to grip when unlocked and locks to prevent accidental setting changes.
- Relieving type: vents excess downstream pressure when the setting is lowered.
- Mounting compatibility: SMC states that brackets and set nuts are common between existing and AR-D products, and the panel mounting pitch is interchangeable between AR(K) and AR(K)-B models.
- Modular design: connects with SMC's AC-D series air filters, lubricators, and other modular F.R.L. components.
Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | AR20-N02BG-Z-D |
| Series | AR-D Modular Regulator |
| Body Size | 20 |
| Port Size / Thread | 1/4 NPT |
| Set Pressure Range | 0.05 to 0.85 MPa (7 to 123 psi) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Fluid | Air |
| Ambient and Fluid Temperature | -5 to 60°C (23 to 140°F), no freezing |
| Exhaust Mechanism | Relieving type |
| Backflow Function | None |
| Mounting | With bracket |
| Pressure Gauge | Round type with limit indicator, MPa/psi dual scale |
| Digital Pressure Switch | None |
| Flow Direction | Left to right |
| Knob Orientation | Downward |
| Unit Representation | Z: product label in psi and °F |
Part Number Breakdown
| Code | Meaning |
|---|---|
| AR | Modular regulator |
| 20 | Body size 20 |
| N | NPT pipe thread |
| 02 | 1/4 port size |
| B | With bracket |
| G | Round type pressure gauge with limit indicator |
| Z | psi and °F on product label, MPa/psi dual-scale gauge |
| D | AR-D series |
Typical Applications
- Point-of-use pressure regulation for pneumatic cylinders, grippers, and valve manifolds
- Machine air supply panels and modular F.R.L. assemblies
- OEM equipment built for North American customers who need psi-marked components
- Direct replacement planning for discontinued AR20-A series regulators
Replacement Parts
SMC lists the following service parts for the AR20-N02BG-Z-D:
| Part Number | Description |
|---|---|
| G36-10-N01 | Round type pressure gauge |
| AR23P-270AS | Bracket assembly |
| AR24P-150AS | Diaphragm assembly |
| AR24P-060AS | Valve assembly |
| AR24P-050AS | Valve guide assembly |
Authorized SMC Distributor
Automation Distribution is an authorized SMC distributor serving industrial customers since 1977. Our team can help you size regulators, build out complete F.R.L. assemblies, and cross-reference discontinued SMC part numbers to current models.
- Series:
- AR-D Modular Regulator
- Body Size:
- 20
- Port Size:
- 1/4 NPT
- Set Pressure Range:
- 0.05 to 0.85 MPa (7 to 123 psi)
- Max Operating Pressure:
- 1.0 MPa (145 psi)
- Proof Pressure:
- 1.5 MPa (218 psi)
- Temperature Range:
- -5 to 60°C (23 to 140°F)
- Exhaust Mechanism:
- Relieving
- Backflow Function:
- None
- Mounting:
- With Bracket
- Pressure Gauge:
- Round Type with Limit Indicator
- Flow Direction:
- Left to Right
- Knob Orientation:
- Downward
- Unit Representation:
- psi Label, MPa/psi Gauge
