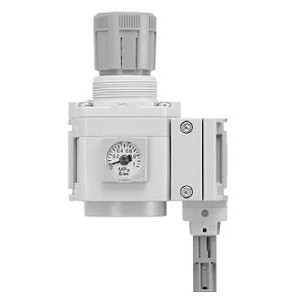

SMC AR20S-N02E-YZ-15V AR20S?50S Series Standby Regulator

SMC AR20S-N02E-YZ-15V AR20S?50S Series Standby Regulator

SMC
SKU:
AR20S-N02E-YZ-15V
Availability:
Factory stock: 2
$372.00
Condition:
New
Current Stock:
Description

AR20S?50S Series Standby Regulator

  • Air consumption: Max. 62% reduction; Monitors the machine standby conditions (when production stops) and automatically decreases the pressure.; Reduces unnecessary air consumption;
  • Compatible with OPC UA; Direct connection enables data communications.;
  • Compatible with wireless systems; Communication cables not required; High security thanks to unique encryption; Communication distance: Max. 100 m;
  • IO-Link compatible
    • Additional Information
    Body Size:
    20
    Pipe Thread Type:
    NPT
    Bore Size:
    1/4
    Pressure Gauge:
    Square Embedded Type Pressure Gauge (With Limit Indicator)
    Knob:
    Upward
    Unit Representation:
    Name Plate: MPa, Pressure Gauge: MPa/psi Dual Scale
    Solenoid Valve Mounting Position And Electrical Entry Direction:
    Mounting Position: Opposite Side Of The Knob, Entry Direction: Rear Side
    Rated Voltage:
    24 VDC
    Electrical Entry:
    M12 Connector
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
