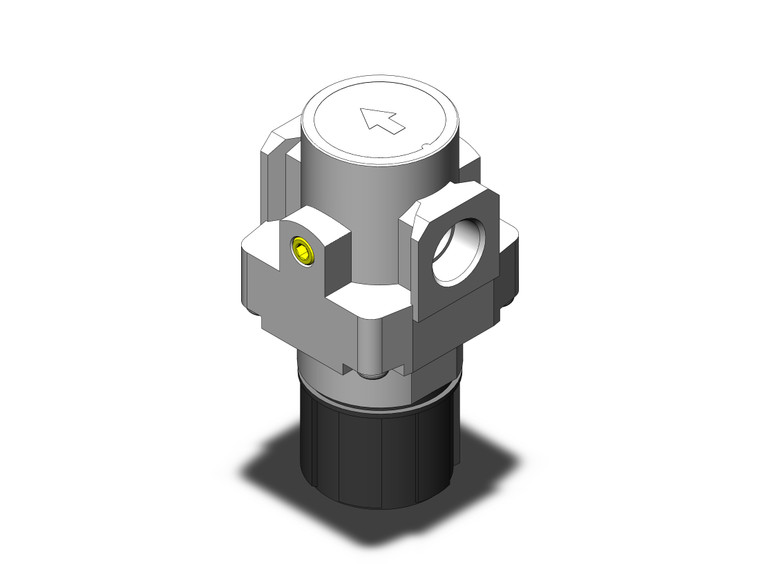

SMC AR40-N04-RZ-A Regulator, Modular F.R.L.
- SKU:
- AR40-N04-RZ-A
- Condition:
- New
- Availability:
- In stock: 3
- Body Size:
- 40
- Thread:
- N (NPT)
- Port Size:
- 04 (1/2)
- Option:
- w/o Mounting Option, w/o Pressure Gauge
- Semi-Standard:
- RZ (R + Z)
Description
AR10-A to AR40-A, Modular Style Regulator, Metric, North American & European
Air Regulator Series AR-A have been updated to the new urban white base color for a clean modern look. The pressure drop across the regulator has been reduced to create a more efficient unit with a maximum set pressure of 100 psi. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting as well as pressure gauges. The modular design of the AR-A series connects with other SMC air preparation equipment of similar size. The new AR-A is available in five body sizes with piping from M5 to 3/4 in Rc, NPT and G thread types.
