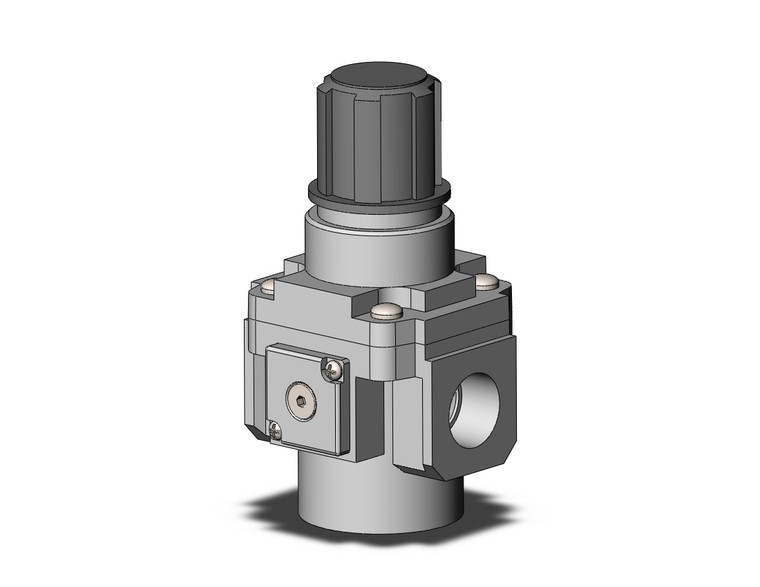

SMC AR40K-N04-YZ-B Regulator
- SKU:
- AR40K-N04-YZ-B
- Condition:
- New
- Availability:
- In stock: 9
- Manufacturer Part #:
- AR40K-N04-YZ-B
- Knob:
- Upward
- Regulator Type:
- Air Regulators
- Port Size:
- 1/2
- Body Size:
- IR1000
- Made to Order:
- Standard
- Option:
- w/o Mounting Option
- Thread Type:
- NPT
- Back Flow:
- W/Backflow Function
- Set Pressure:
- 0.05 to 0.85 MPa Setting
- Exhaust Mechanism:
- Relieving Type
- Flow Direction:
- Left to Right
- Pressure Units:
- Unit on Product Label: psi, Pressure Gauge: MPa/psi Dual Scale
Description
AR20(*)-B to AR60(*)-B, Regulator & Regulator w/Backflow Function
Air Regulator Series AR-B have been updated to the new urban white base color for a clean modern look. The AR-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AR-A while maintaining panel mounting interchangeability with the previous AR models. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting. The modular design of the AR-B series connects with other SMC air preparation equipment of similar size. The new AR-B is available in six body sizes with piping from 1/8 to 1 in Rc, NPT and G thread.
- Modular type regulator.- Available with built-in backflow mechanism.
- Optional embedded pressure gauge.
- Rc, NPT or G(PF) threads.
- Diaphragm is made of ozone resistant rubber material (HNBR).
-
