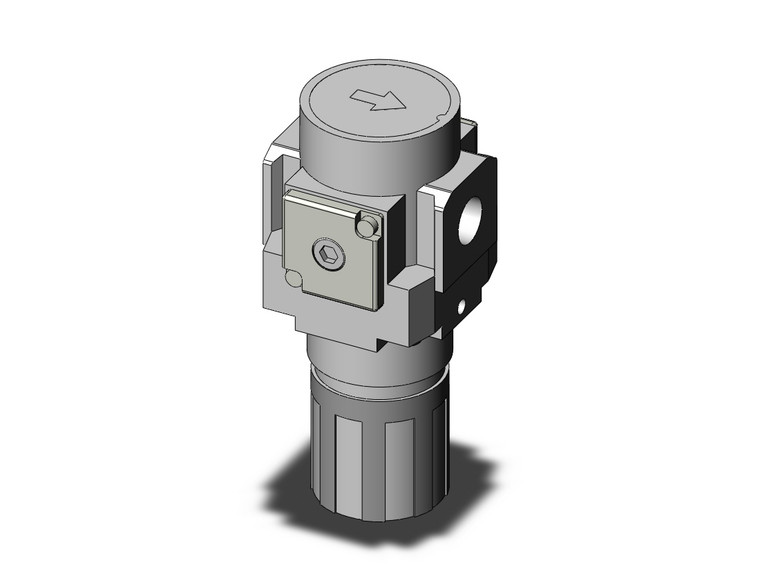

SMC ARP30K-02 Regulator, Precision
- SKU:
- ARP30K-02
- Condition:
- New
Description
ARP20/30/40, Direct Operated Precision Regulator
The ARP is a modular style, direct operated precision regulator. A locking adjustment knob allows the pressure to be set, and then locked to prevent accidental setting changes. The ARP20/30/40 series is available with a back flow function that exhausts the air pressure in the outlet side reliably and quickly. Special applications include (10-) clean room compliant, (20-)copper-free, fluorine-free, and (21-) clean room compliant, copper-free, fluorine-free and silicon-free.
- Direct operated precision regulator- Sensitivity: within 0.2%F.S.
- 3 types of set pressure allow more freedom in designing a circuit
- Repeatability: within 1%F.S.
- Backflow function available
Additional Information
Regulator Type: |
Precision Regulators |
Port Size: |
1/4 |
Accessories: |
None |
Body Size: |
IR1000 |
Size: |
30 |
Thread Type: |
Rc |
Pressure Units: |
Nameplate & Pressure Gauge in Imperial Units: MPa |
Specification: |
0.005 to 0.4MPa Setting |
