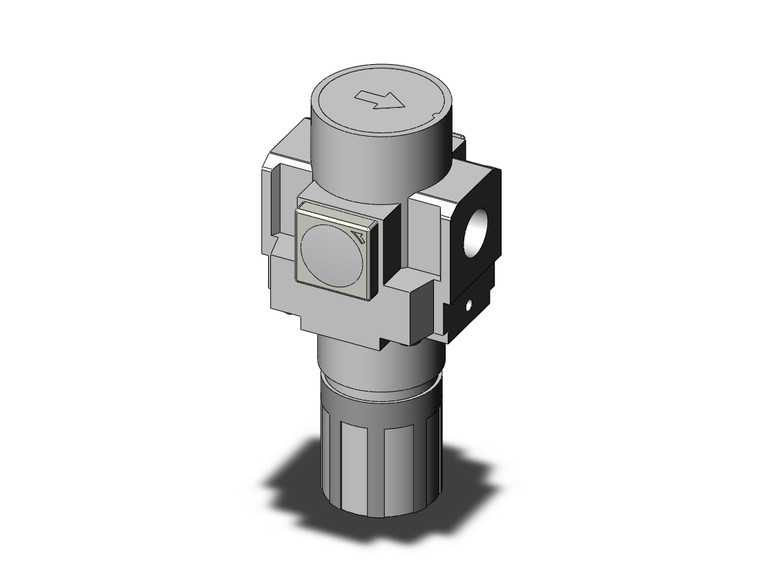

SMC ARP40-N03E-3Z Regulator, Precision
- SKU:
- ARP40-N03E-3Z
- Condition:
- New
Description
the arp is a modular style, direct operated precision regulator. a locking adjustment knob allows the pressure to be set, and then locked to prevent accidental setting changes. the arp20/30/40 series is available with a back flow function that exhausts the air pressure in the outlet side reliably and quickly. special applications include (10-) clean room compliant, (20-)copper-free, fluorine-free, and (21-) clean room compliant, copper-free, fluorine-free and silicon-free.
- direct operated precision regulator
- sensitivity: within 0.2%f.s.
- 3 types of set pressure allow more freedom in designing a circuit
- repeatability: within 1%f.s.
- backflow function available
Additional Information
Size: |
40 |
Backflow Function: |
None |
Thread: |
N (NPT) |
Port Size: |
03 (3/8) |
Accessory: |
E (Square Embedded Pressure Gauge w/Limit Indicator) |
Specifications: |
3 (0.008 to 0.6 MPa Setting) |
Pressure Unit: |
Z (Nameplate & Pressure Gauge in Imperial Units= psi) |
