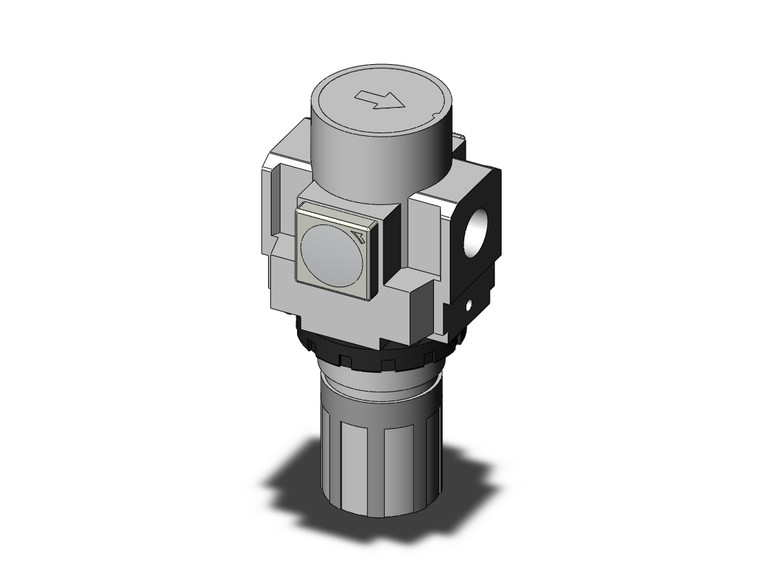

SMC ARP40-N03EH-Z Regulator, Precision
- SKU:
- ARP40-N03EH-Z
- Condition:
- New
- Availability:
- In stock: 3
Description
ARP20/30/40, Direct Operated Precision Regulator
The ARP is a modular style, direct operated precision regulator. A locking adjustment knob allows the pressure to be set, and then locked to prevent accidental setting changes. The ARP20/30/40 series is available with a back flow function that exhausts the air pressure in the outlet side reliably and quickly. Special applications include (10-) clean room compliant, (20-)copper-free, fluorine-free, and (21-) clean room compliant, copper-free, fluorine-free and silicon-free.
- Direct operated precision regulator- Sensitivity: within 0.2%F.S.
- 3 types of set pressure allow more freedom in designing a circuit
- Repeatability: within 1%F.S.
- Backflow function available
Additional Information
Size: |
40 |
Backflow Function: |
None |
Thread: |
N (NPT) |
Port Size: |
03 (3/8) |
Accessory: |
EH (E+H) |
Specifications: |
0.005 to 0.4MPa Setting |
Pressure Unit: |
Z (Nameplate & Pressure Gauge in Imperial Units= psi) |
